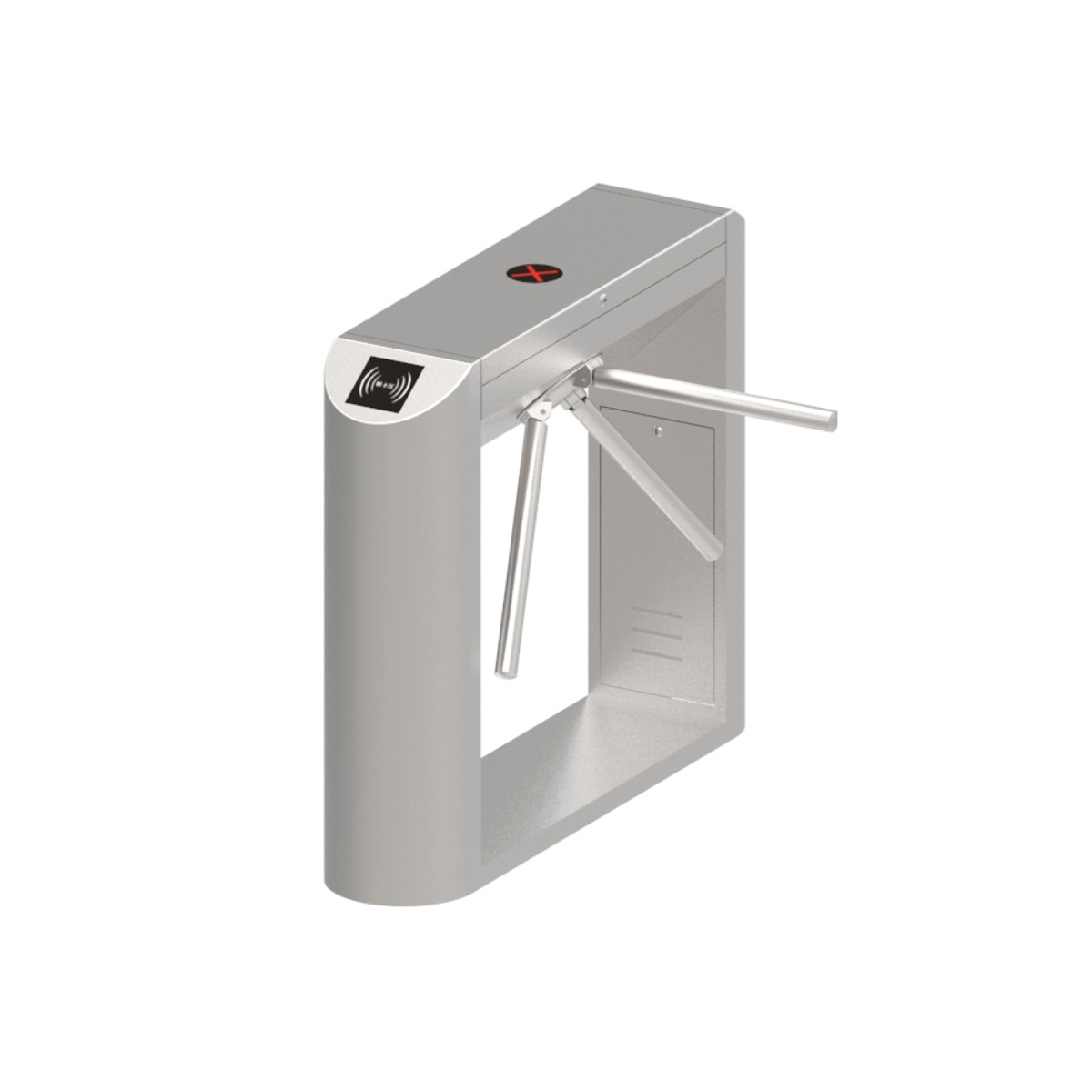

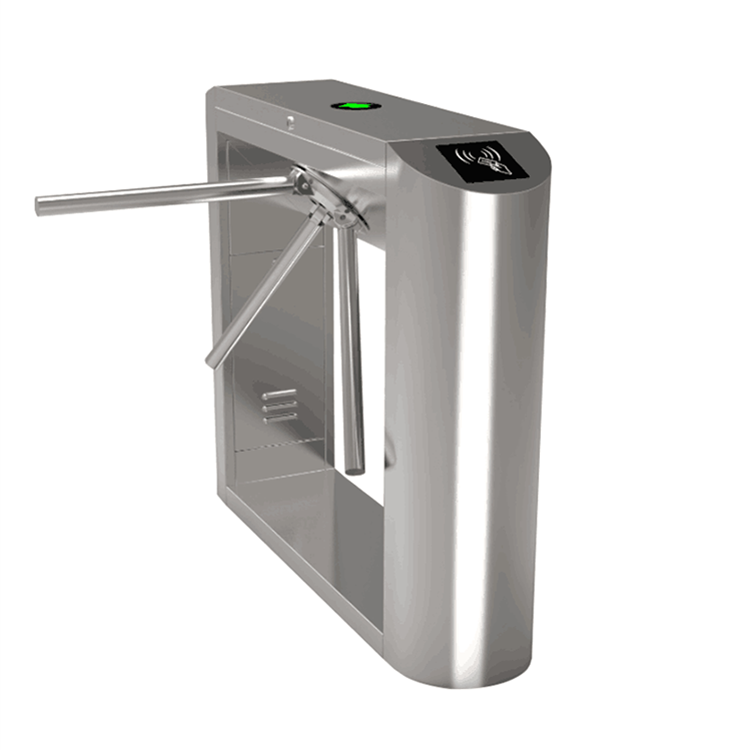

High Quality Mechanical Tripod Turnstile
LD-T304 is a high quality single-lane half height turnstile for access control, which realizes smooth and quite passage without much power consumption. Its cabinet is made of 304 stainless steel, it is quite durable and capable for outdoor applications. Tripod arms are held in fixed position and it only allows one pedestrian to pass at one time, and denies un-authorized access. LD-T307 tripod turnstile is totally compacted for application which has limited place. With built in RFID reader or fingerprint or QR code scanner, it provides a touch-less, convenient and secured entrance control.
LD-T304 mechanical tripod turnstile is a space-saving and cost-saving method to protect your facility's security. It can be used in interior and exteriorenvironment, like office buildings, construction site, attractions.
| Moduel No. | LD-T304 |
| Size | 1200х280х980 mm. |
| Material | 304 stainless steel |
| Unlocking time | <1s |
| Passing speed | 35 people / minute |
| Access width | 550 mm |
| Input voltage | 100V ~ 240V |
| Ambient temperature | : -20~+70 ℃ |
| The material thickness | 1.2mm |
| Access direction | One-way / two-way |
| Opening mode | ID/IC card reader, barcode, button opening, etc. |
Basic information about LD-T304:
1, SUS304 stainless steel housing
2, LED indicator in bi-direction
3, Bi-directional tripod turnstile with arm drop function for emergency or fire.
4, Cost effective, high quality, attractive price
5, Highly imploded with various access control system
6, Easy installation and maintenance
Performance:
1. Tripod turnstile mechanism--Semi-automatic movement with large hydraulic shock absorption,it makes least noise when rotating
2. 485communication,highly integrated with all kinds of access Control system
3. High quality electrical components, all international certificated
4. Mini fan to prevent condensation and heat dissipation,makes It more suitable for outdoor projects

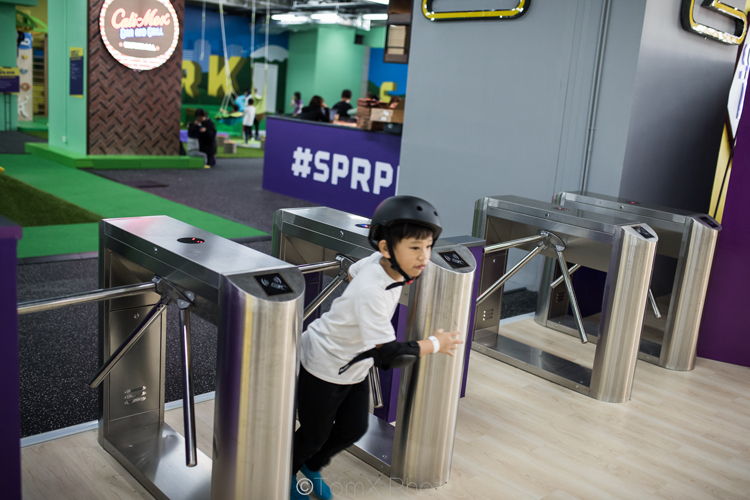

Project:
