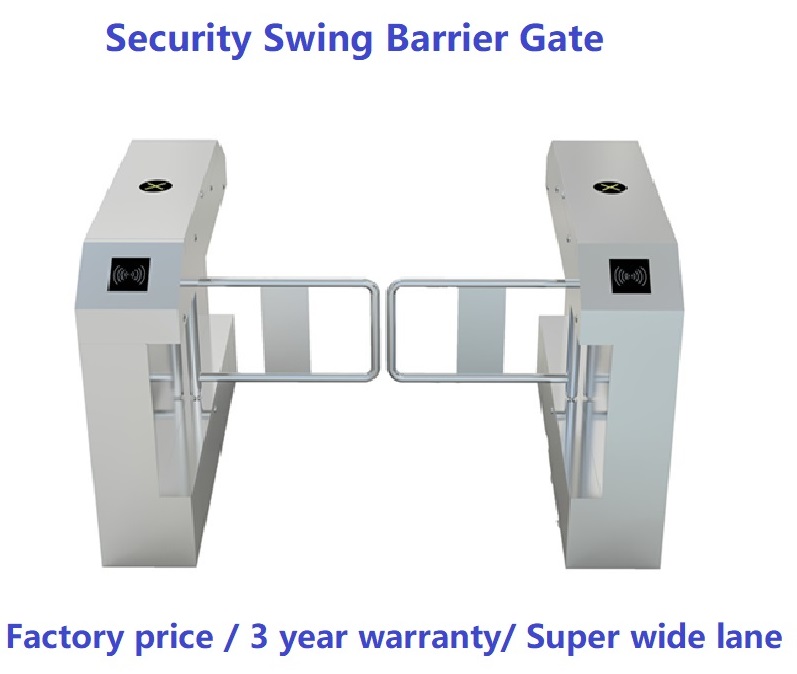

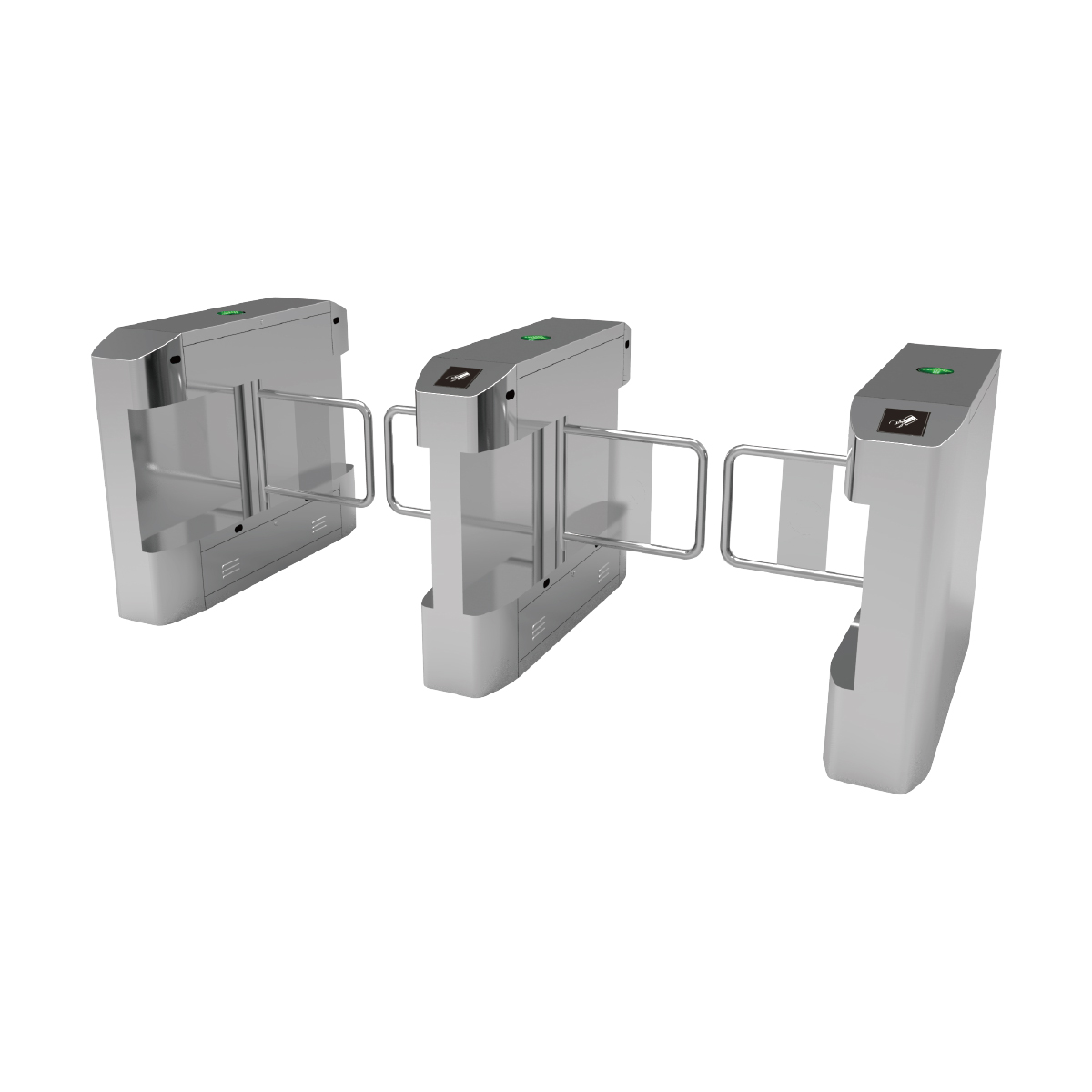

LD-B501 Stainless Steel Security Swing Barrier Gate

Lide Tech security swing barrier gate can be embedded with card reader, passage counter, qr code or bar code scanner, display panel and other traffic lights.



This swing gate barrier suits all facilities or areas where require wide access. The swing barrier gate can be used in single lane or dual lanes and installed aesthetically in the entrance and exit of facilities.

Features:

*Different operation pattern: Single direction/ Bi-directional, free passage or passage locked.

*Heavy duty design for 24 hours continuous working

*LED display indicates direction and traffic status

*Automatic reset after power failure

*Highly integration with RFID Card, Biometric recognition reader through NO input

 Specifications:



Module No. LD-B501
Size 1200*280*980mm
Material  304 stainless steel
Access width 600mm (Maximum 1400 mm)
Input voltage 100V ~ 240V
Drive motor DC 24V motor, low noise
Passing speed 35~40 people / minute
Applicable temperature : -20~70℃
Life Time 6 million times;
The material thickness 1.2mm/ 1.5mm
Response time <1s
Swing direction One-way / two-way
Opening methods ID/IC card reader, infrared induction automatic opening, button opening, etc.
