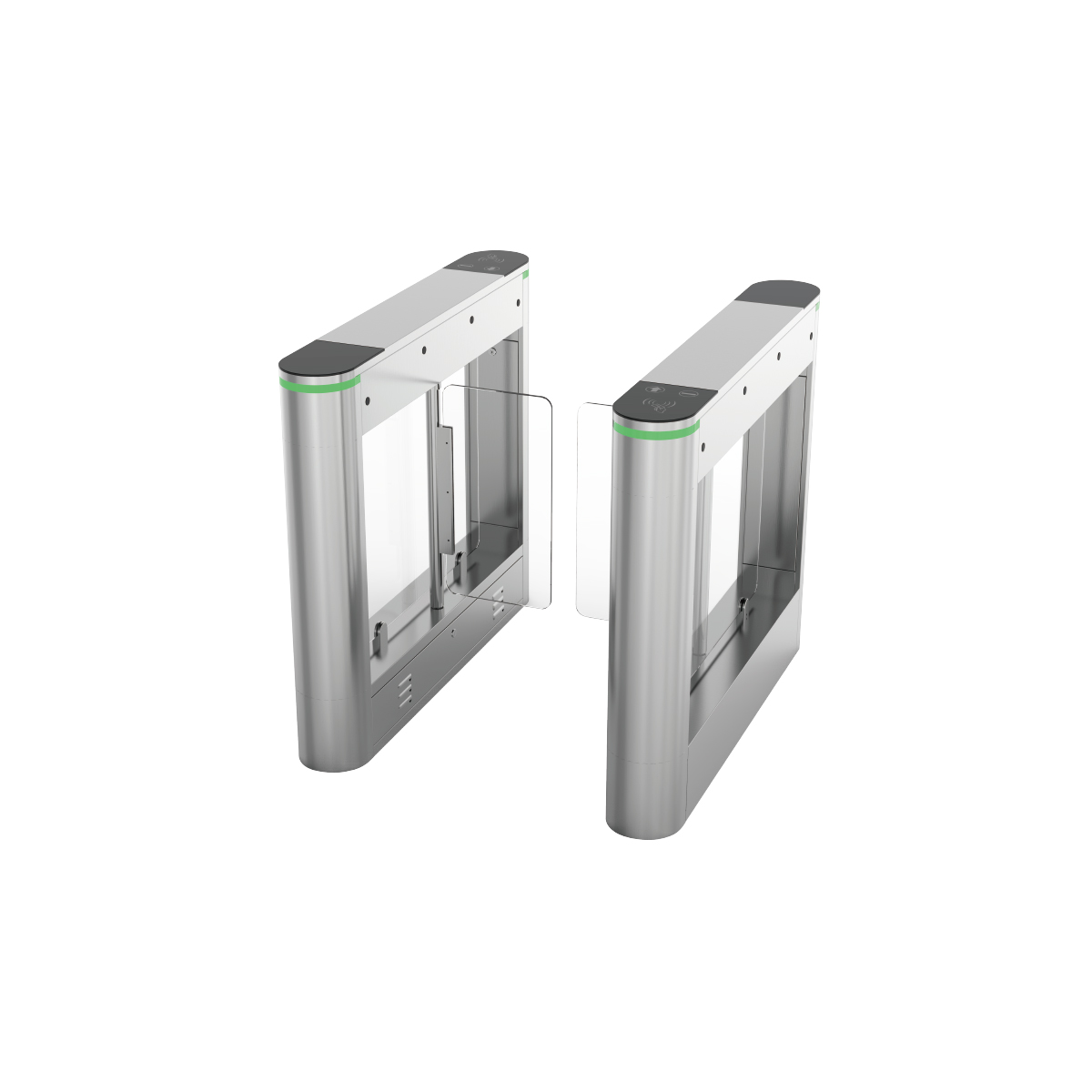

Pedestrian Access Control Swing Gate Turnstile
LD-B503 swing gate turnstile is the ideal solution for rapid separation and control of pedestrian, providing effective entry access control management. The swing gate features contactless optical infrared sensor to accurately detect pedestrian and objects.
The barrier elements are available with acrylic glass or tempered glass materials. Swing Turnstile consists of pedestrian access control solutions from robust turnstiles structure to elegant wing baffles that are suitable for the most varies of access control applications, such as the office building, hotel, airport and shopping mall. All swing barrier gates ensured maximum safety due to its sensitive impact detection system.
Parameters:
| Model No. | LD-B503 |
| Size | 1200*185*1020 mm (L*W*H) |
| Material | 304 stainless steels, Acrylic |
| Channel width | 600mm (Max 1400 mm) |
| Thickness of the outer box | 1.2 mm |
| Input voltage | AC 100 ~ 240V, 50/60Hz |
| Traffic direction | Single or bi-directional |
| Passing speed | 35~40 people/minute |
| Life | 9 million times; |
Features:
* Passage clearance from 600mm up to 900mm
* Under 24V control power, electrical and mechanical safety for all components. To avoid injury, all corners and sides are rounded.
* Motion start and stop are controlled smoothly by Microprocessor.
* Mechanical anti-clamping functions for safety.
* The barrier can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
* Various top cover options with LED indicators for passage direction.
* Integrate with Access Control System, Attendance System, Visitor System etc.
* Biometric Integration supported in swing gates which allow using facial recognition or fingerprint modules for added personnel identification methods.
