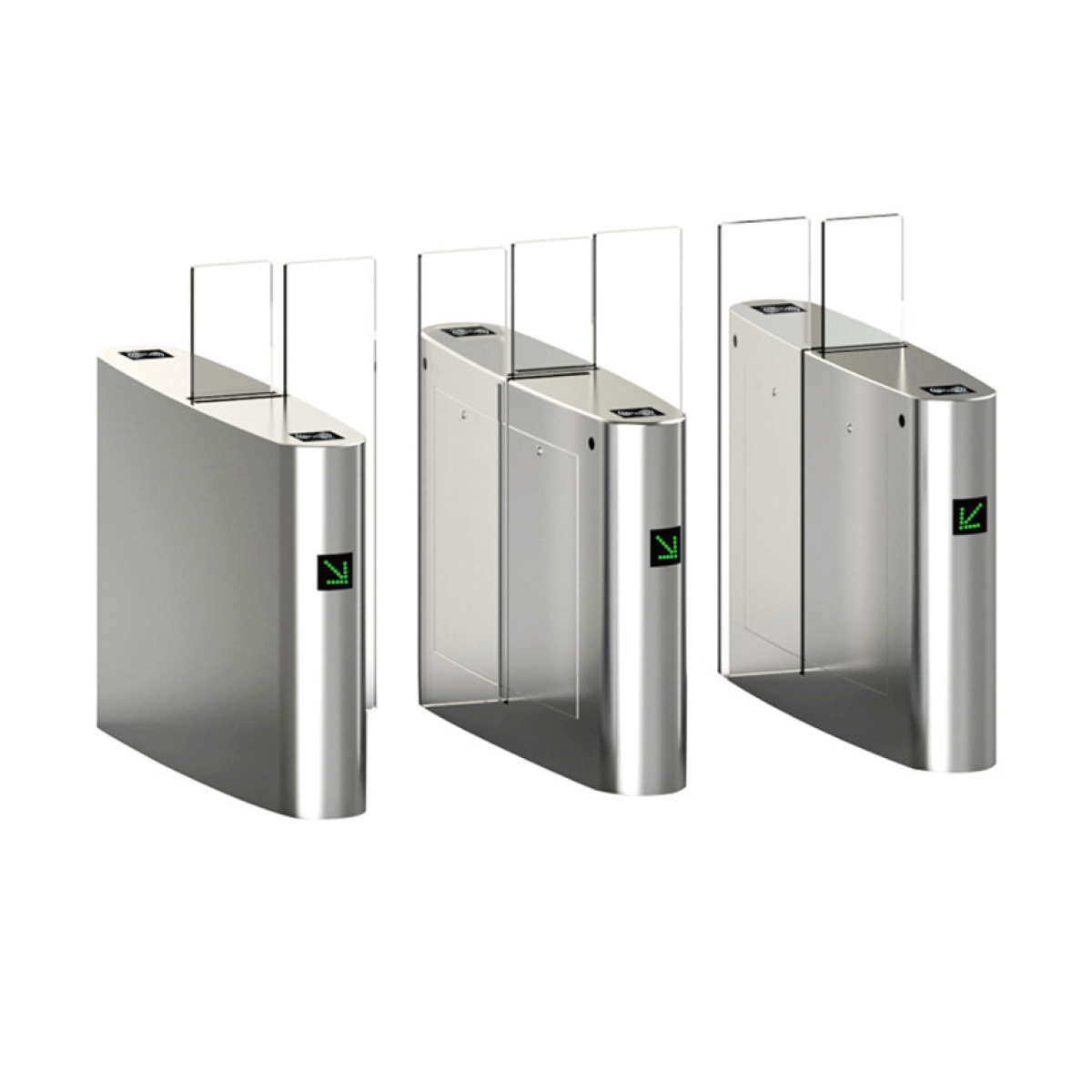

LD-P401 Full Height Automated Motorized Sliding Turnstile
The Sliding Turnstile is an innovative access control technology that designed to achieve the balance with stylish appearance, Intelligent management and secure guard. The Automated Turnstile is equipped with high gate panels to prevent the unauthorized visitors from climbing over the gate.
The Full Height Sliding Turnstile is the ideal solution of Indoor Access Entrance for high-end building office and hotel. It is mainly made of stainless steel 304 and acrylic. The gate could be customized with different height and printed the logo inside.
Parameters:
| Model No. | LD-P401 |
| Size | 1400*310*980 mm (L*W*H) |
| Material | 304 stainless steel, acrylic |
| Channel width | 550mm |
| Thickness of the outer box | 1.2 mm / 1.5mm |
| Input voltage | AC100V ~ 240V, 50/60Hz |
| Traffic direction | Single or bidirectional |
| Passing speed | 30~35 persons/minute |
| Drive Type | DC 24V brushless motor |
| Life | 9 million times; |
Features:
* Brushless DC motor, no need to change carbon brush, reducing maintenance work.
* The appearance and material of cabinet could be customized. Cabinet can be paint steel or stainles steel 201, 304, 316.
* The system detects and voice prompts when users walk into lane from opposite direction if it is single traffic direction.
* High performance infrared sensors detect and prevent the tail-gating.
* A modern arrow symbol directs traffic direction and status.
* Key internal components treated with high standard of anti-rust and dust-proof.
* During power failure, gate panel would open automatically to allow free pass .
* The sliding turnstile can be used bi-directionally and can be integrated with all common access control systems
