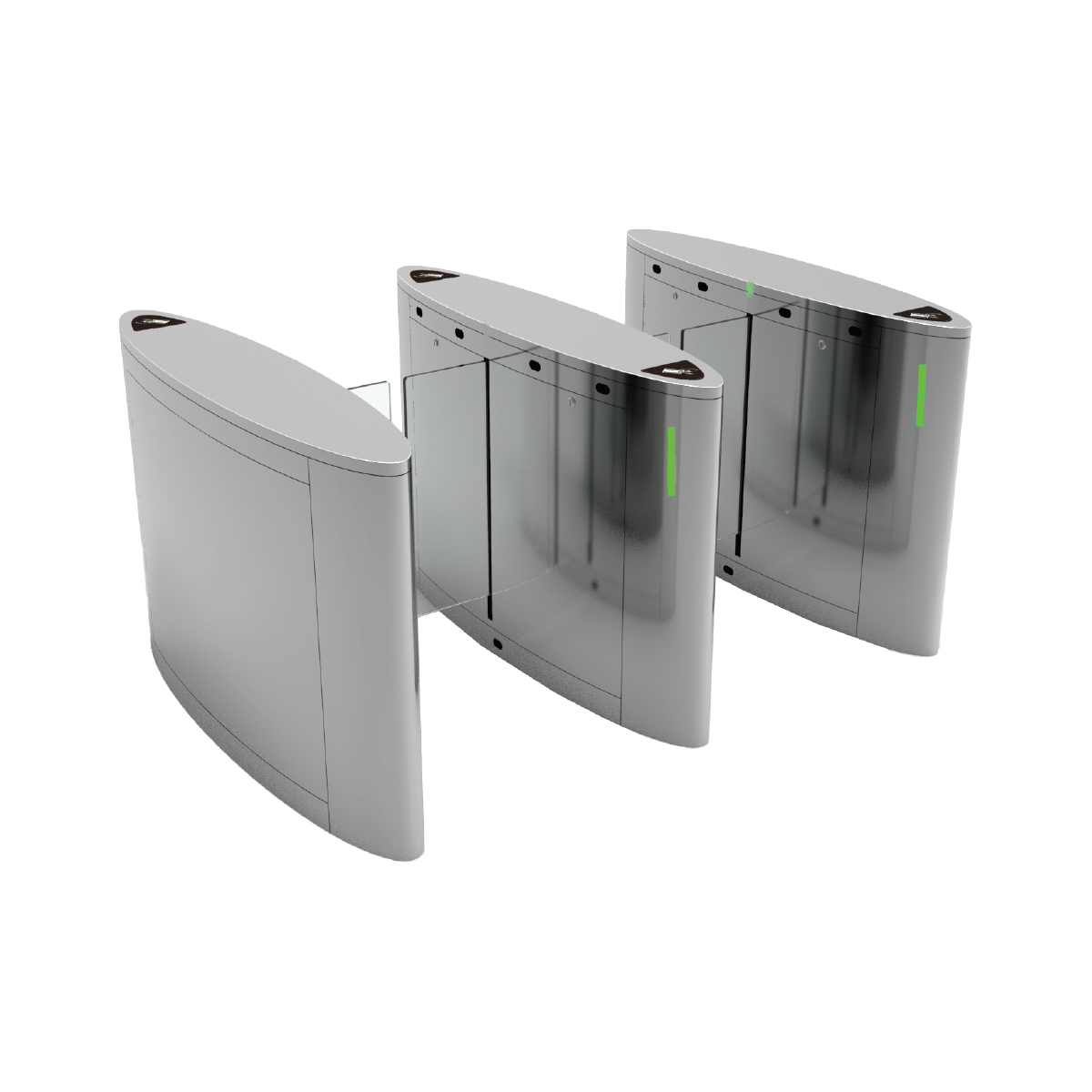

Optical Sliding Barrier Turnstile
LD-P402 Sliding Turnstile, available in customized design, combines an advanced optical infrared detection solution with motion control technology to provide a superior high security entrance system with a modern look.
The clean, elegant look of acrylic baffles helps the Optical entrance system blend high-end styling with high-class security. The efficient “No-Touch” Sliding Barrier Gate streamlines access while blocking unauthorized users. Product options, including a standard and extended length pedestal, provide additional design versatility to accommodate individualized needs.
Parameters:
| Model No. | LD-P402 |
| Size | 1400*310*980 mm (L*W*H) |
| Material | 304 stainless steel, acrylic |
| Channel width | 550 mm |
| Thickness of the outer box | 1.2 mm |
| Input voltage | AC100V ~ 240V, 50/60Hz |
| Traffic direction | Single or bidirectional |
| Passing speed | 30~35 persons/minute |
| Drive Type | DC 24V brushless motor |
| Life | 9 million times; |
Features:
* Tailgate Detection - Sensitive optical detector combine with top algorithmic pattern detection prevents tailgating on a valid entry.
* Access Allowed - Top-mounted status indicator displays green arrow pointing in authorized direction, along with audible confirmation tone.
* Access Declined - Indicator displays red “X” and an audible alarm indicates an invalid entry, invalid card, tailgate attempt or crawl attempt.
* Anti electric shock - The electronic modules operate the safety voltage 24V and prevent pedestrian from electric shock
* Logo printing on glass – For an attractive branded look and advertisement.
* In the event of power outage, mechanical spring retracts barriers into pedestal.
* Reader Integration mounting options for RFID and barcode card readers located at each end of the pedestal. Varieties of other readers are available (swipe, biometric, etc.).
