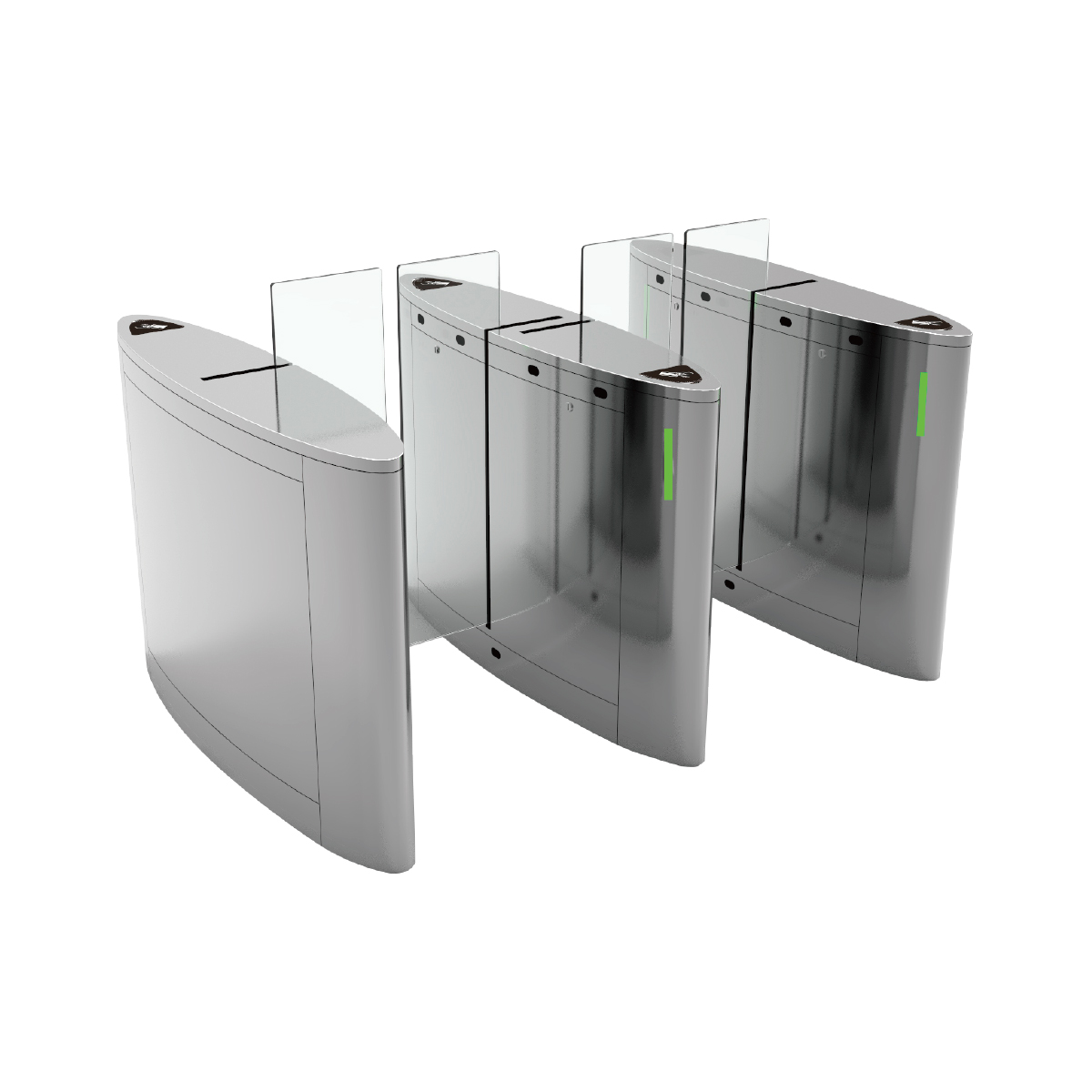

Motorized Slide Turnstile Speed Gate
The Motorized Slide Turnstile is typically used for pedestrian movement in factories, offices building, amusement parks, museums, and movie theatres etc. The Slide Gate is offered with a brushless DC motor for the movement of the swing baffles and can be integrated with varied access control systems.
The drive offer reach to 9 million cycles and is ideal for indoor application, however can be deployed outside a building under a shelter for protection from the natural elements.
LD-P404 Slide Turnstile offers the highest security for indoor application among all pedestrian gate with its full height barrier. The Gate is offered in both SS304 & SS316 versions.
Parameters:
| Model No. | LD-P404 |
| Size | 1400*310*980 mm (L*W*H) |
| Material | 304 stainless steel grades, Acrylic |
| Channel width | 550mm |
| Thickness of the outer box | 1.2 mm |
| Input voltage | AC100V ~ 240V, 50/60Hz |
| Traffic direction | Single or bidirectional |
| Passing speed | 30~35 persons/minute |
| Drive Type | DC 24V Brushless Motor |
| Life Time | 9 million times; |
Features:
* For functions of self-checking and audible alarms, it convenient for maintenance and daily use.
* Program operation mode of equipment through the built-in button inside the main board.
* Anti-rushing function: the door locks automatically if not receive the opening signal.
* To Adjust the gate to normal open or normal closed to meet the different requirements.
* Single way or bi-directional of traffic method.
* The gate can unlock in case of power failure and lock again when power recover.
* Automatic reset function: When the baffles retract into the cabinet, if people do not pass through within specified time, system will cancel the permission this time.
