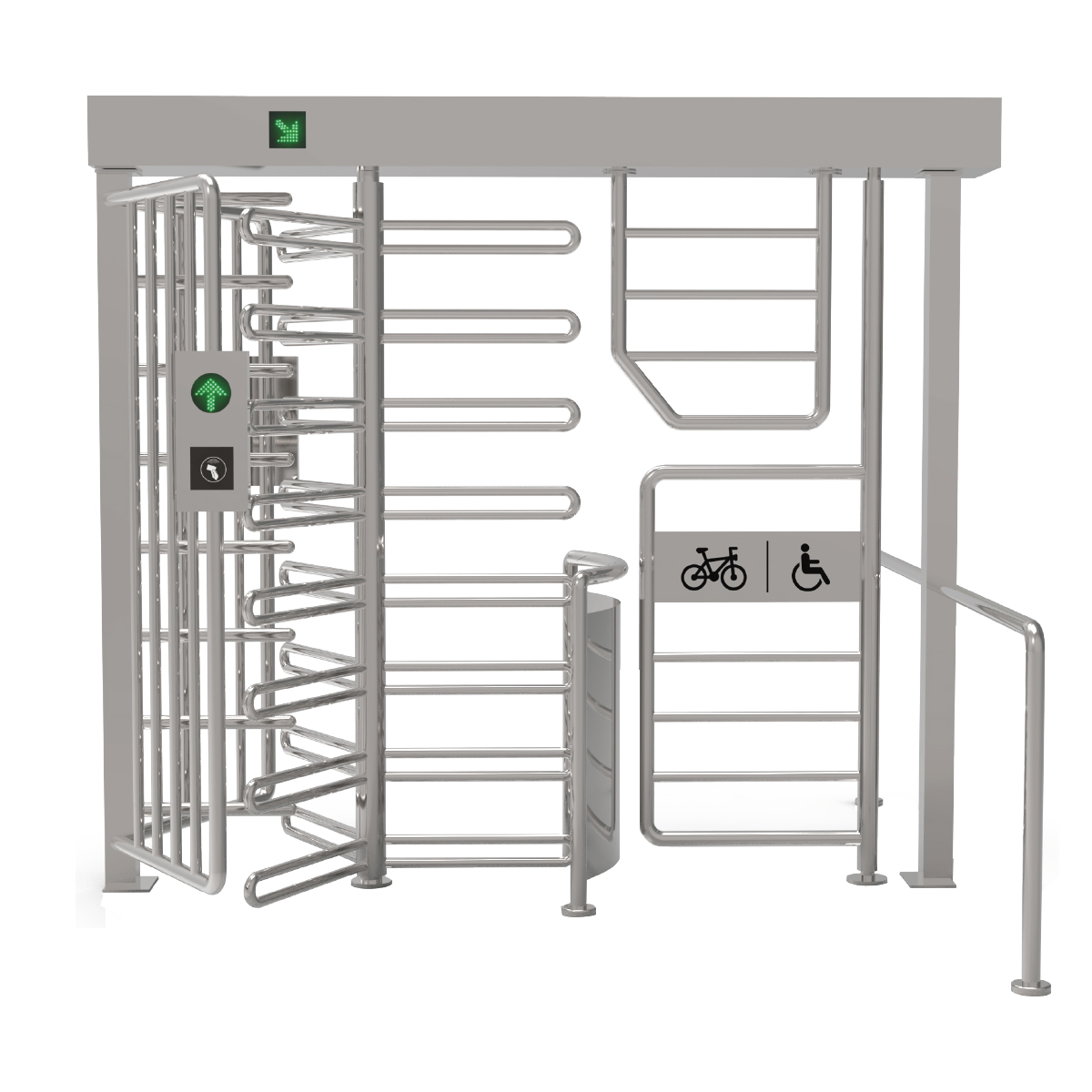

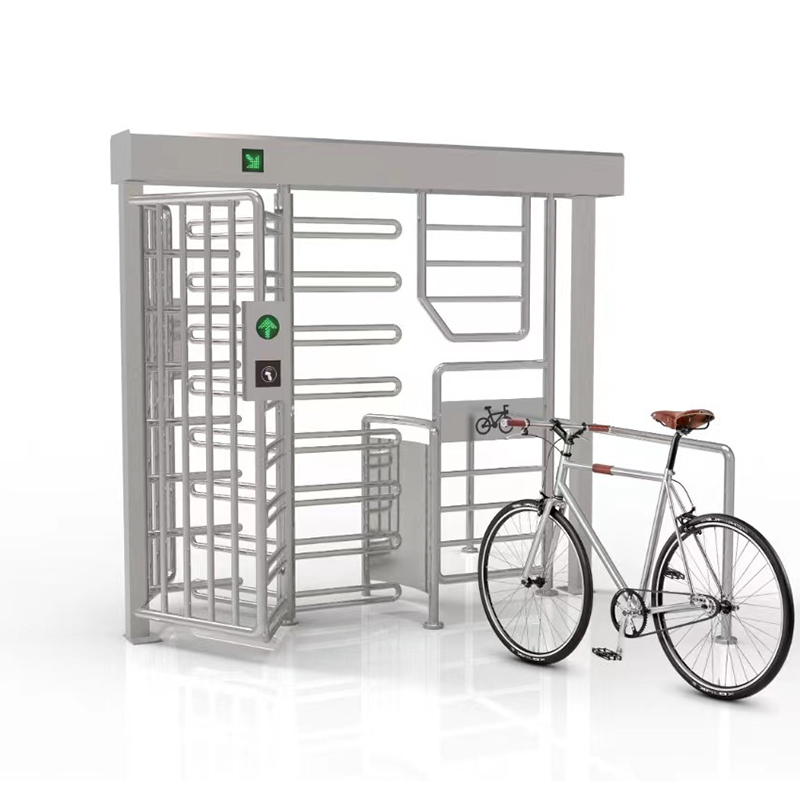

Fully-motorized full height turnstile with bicycle door is use for both pedestrian and bicycle to go through at the same time. When receiving a valid open signal, the barrier of pedestrian passage will move towards the open direction at a certain angle, indicating pedestrians to pass through. Meanwhile, the barrier of bicycle door will move at 90° to be open state, then person pushes arms of turnstile gently and the arms will move automatically to the access direction. The bike access door would close again at the setting time.
The housing and arms are with detachable structure, that is easy for transportation and installation. It could also set to width 900mm of gate to comply DDA compliance, allows the disabled with wheelchair to enter and exit.
Parameters:
| Model No. | LD-Q810 |

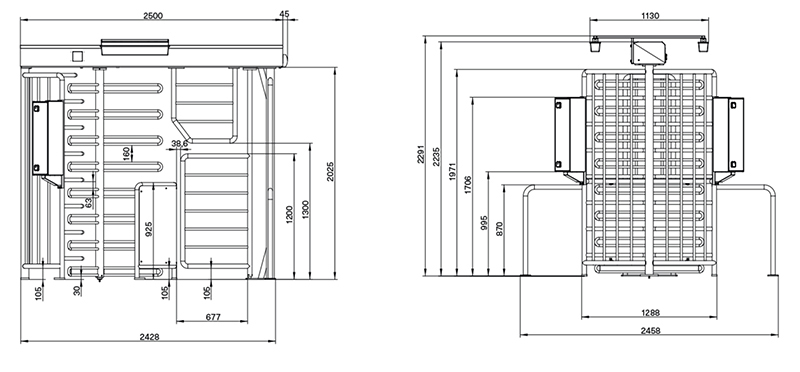

| Size | 2500*2458*2291 mm (L*W*H) |
| Material | 304 stainless steel grades |
| Channel width | 600mm for pedestrian
600-900mm for wheelchair and bike |
| Thickness of the outer box | 1.5mm |
| Input voltage | AC 100 ~ 240V, 50/60Hz |
| Traffic direction | Single or bi-direction |
| Rotor Angle | 3*120° |
| Passing speed | 25~30 persons/minute |
| Life | 5 million times; |
Features:
* Safety Voltage – The electric modules operate under the low voltage 24V and avoid the accident of electric shocks.
* Access Control – Integrate with RFID Card Reader and biometric device, and QR or barcode scanner provide by customer.
* Fail Safe / Fail Lock – The turnstile equipped with fail-lock mechanism. In case of emergency, the fail-lock setup would lock the rotor and limit the access of both direction; the fail-safe setup would unlock the rotor to ensure free passage.
* Customization is available – For different size of locations, we could adjust the design and dimension of full height turnstile according to customer’s specific demand.
* 100% Tested – Each device would fully test of all functions before shipments.
* Fire Alarm Integration - To be integrated into existing fire alarm system to provide timely action in case of emergency.
