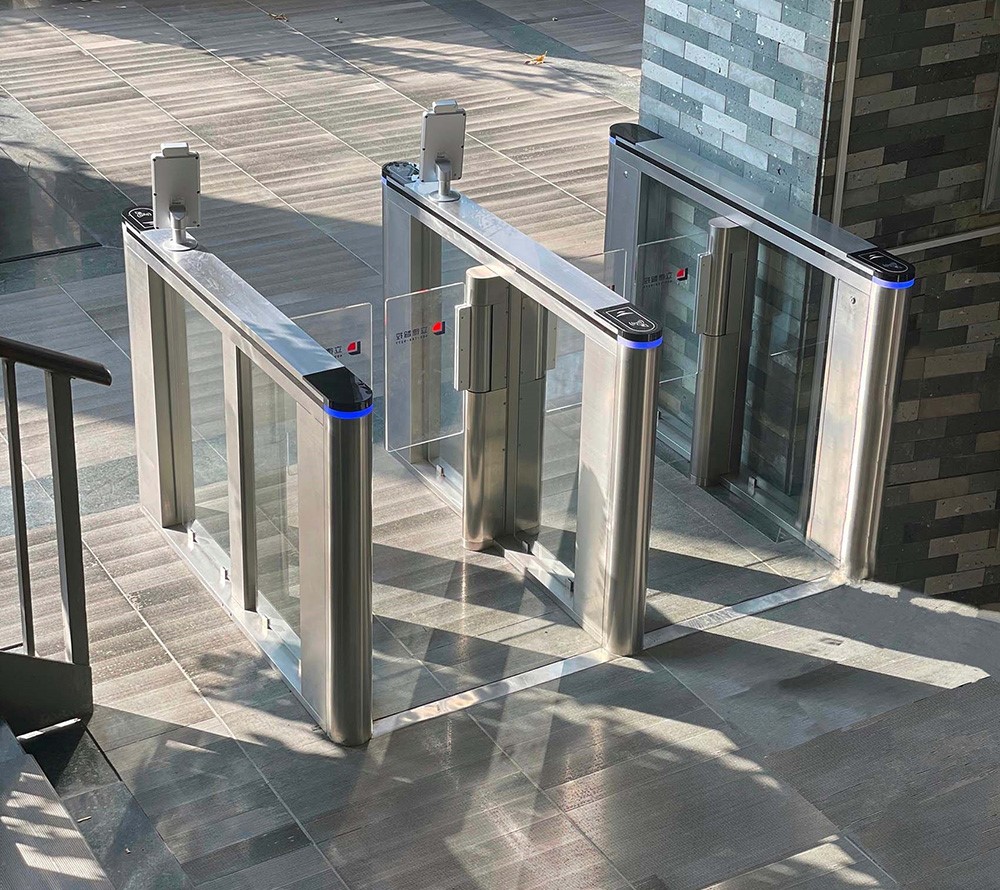

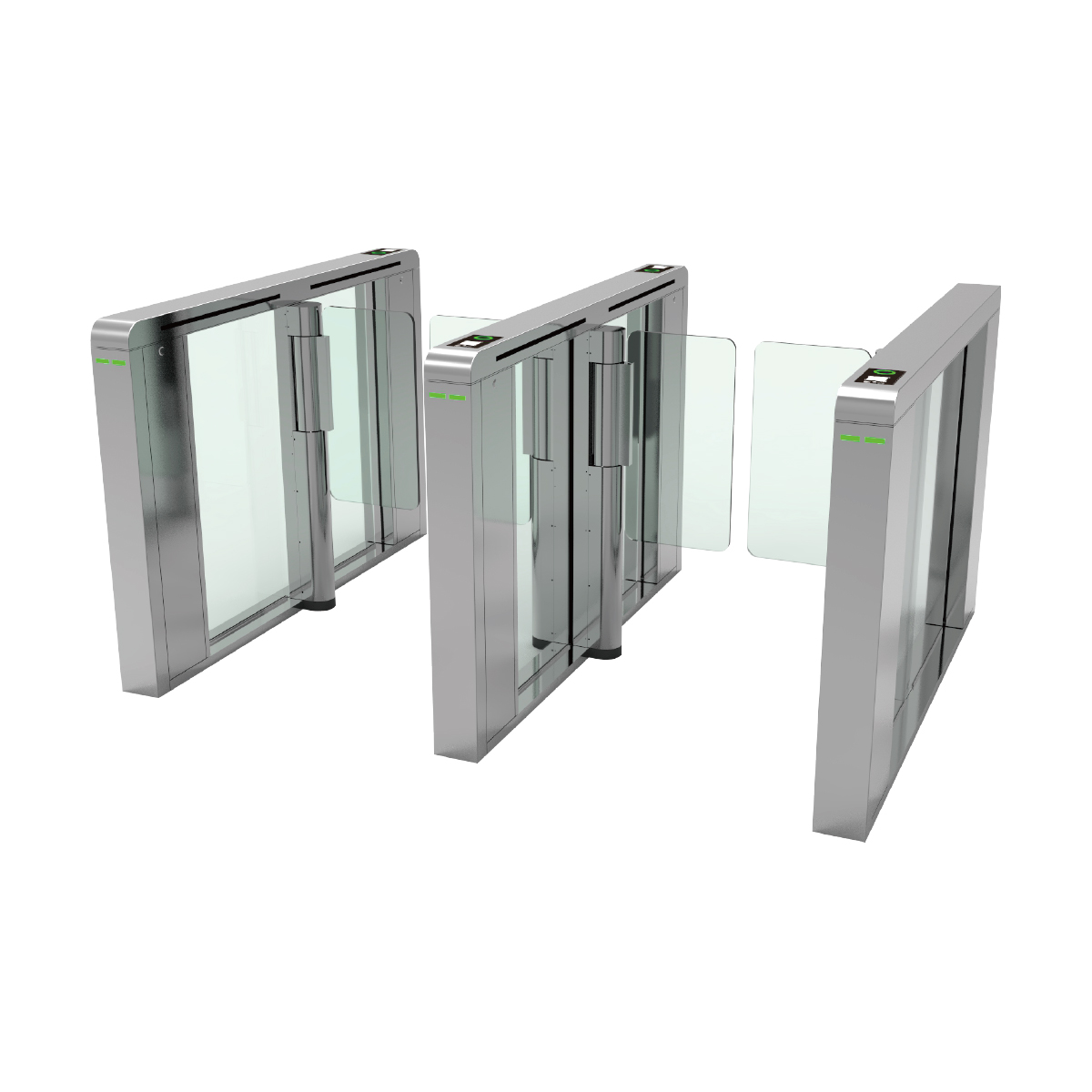

LD-S701 High-Level Optical Speed Gate Barrier Turnstiles
The speed gate turnstileis designed in a modern , luxury and elegant style of entrance & exitgate for commercial buildings. It provides a stylish and touchless access control solution for facilities which require high aesthetic and comfort.
The high-level speed gateis controlled by the access software system and automatically open or close for the pedestrians. Speed gate normally applied to high density of pedestrian flow areas. With RFID card reader, infrared sensors, QR code reader, face recognition, these modules could assist thespeed gateconfirm users' entry request rapidly verified and process the traffic quickly.
| Model No. | LD-S701 |
| Size | 1400*120*980 mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Channel width | 600mm(Maximum 1000 mm) |
| Thickness of the outer box | 1.5 mm |
| Drive motor | DC 24V Brushless motor |
| Input voltage | 100V ~ 240V |
| Traffic direction | Two-way traffic; |
| Passing speed | 35~40 persons/minute |
| Opening methods | ID/IC card and other readers verify opening, infrared induction automatic opening, opening button, etc. |
| Protection functions | electromechanical anti-collision, infrared alarm for illegal intrusion |
| Life | 9 million times; |
| Software support | Ticket system, Attendance system, Access control system, Face recognition, etc. |
Product Feature:
1. With its bidirectional feature, speed gate can be used for entrant and exit in the same lane.
2. The frame is SUS 304 stainless steel and thickness up to1.5mm to make the modern appearance and the DC 24V brushless motor, the whole operation is smooth , steady and no noise.
3. The gate design includes material type, size, lighting effects , logo and functions, all could be customized to fulfill any aesthetic requirements.
4. The optical speed gate provides superior management ability and capable of integrating with various control softwares, including visitor management, employee management, access control, emergency management, third party systems etc.
