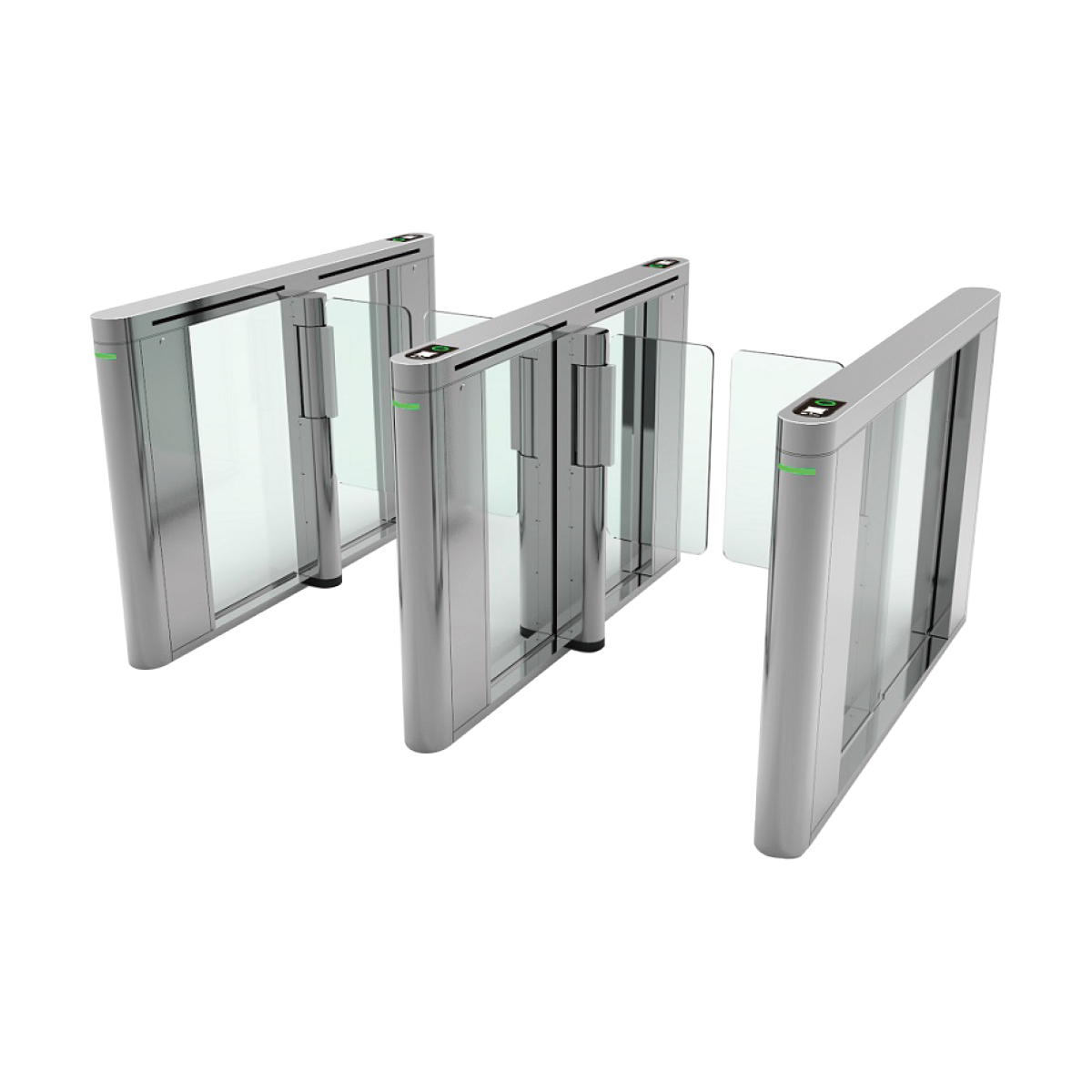

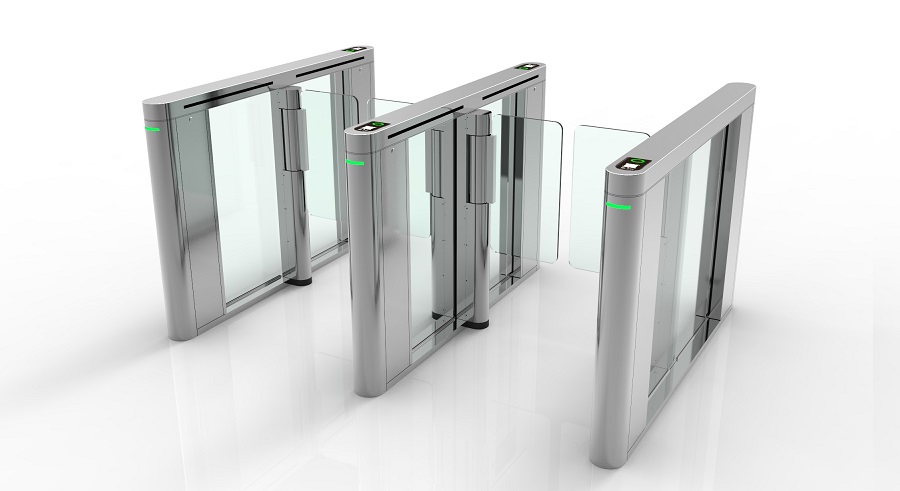

LD-S702 Speed Access Control Speed Access Barrier Gate



Speed access barrier gates offer a sleek and stylish choice when you need to balance security requirements with aesthetic desires. With highly reflective surfaces of glass and stainless steel creating a well-proportioned outlook that is professional and modern. Speed gates fit perfectly in lift lobbies, visitor receptions, and VIP areas of some of the World's most iconic buildings, and it seamlessly integrated into the office without any sense of incongruity, which level-up the safety, security, and the high-class image of the building and internal design.

Product Features:

1. DDA width gates can accommodate all patron

2. Heavy traffic, especially at busy times

3. Full-height glass design can be used to provide a highly secure barrier for semi-maned or mainly unattended reception areas

4. High-quality architecture and design

5. They can be connected remotely to allow remote diagnosis and allow remote access

Product specifications:

Moduel No. LD-S702
Size 1400*120*980mm;
Material 304 stainless steel, acrylic
Channel width standard 600mm
Thickness of the cabinet 1.5mm
Drive motor DC 24V brushless servo motor, low noise
Traffic direction One-way traffic/two-way traffic
Passing speed  50~55 persons/minute
Opening methods  ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc.
Gate opening signal dry contact signal
Protection functions clutch anti-collision, infrared anti-pinch, infrared alarm for illegal intrusion
Life  not less than 9 million times
Number of infrared 6 pairs
Power 24 V, 100W



Product Applications:

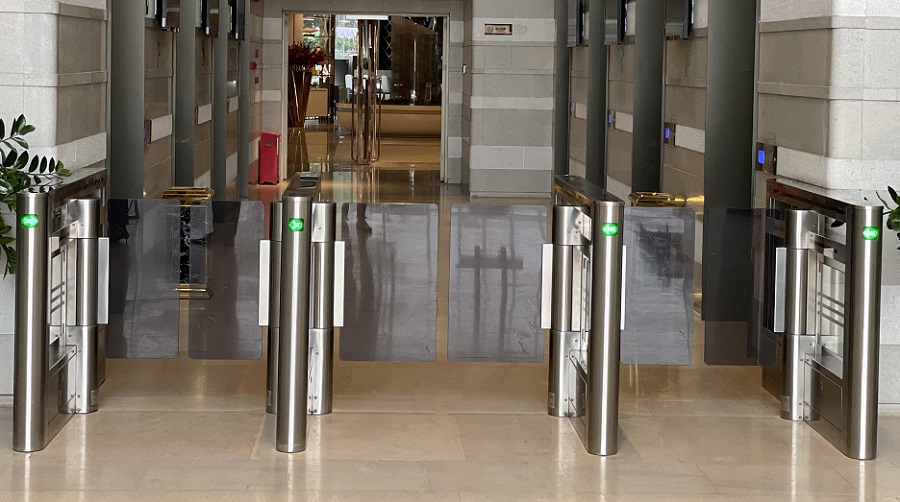

Speed Gate Turnstiles are used in high-traffic areas. They are often used in office buildings, corporate lobbies, subway terminals, and university facilities. These turnstile gates are used to process large crowds of pedestrians without causing a backup. Access control speed gates are very suitable for any modern application due to its stylish and exquisite features.
