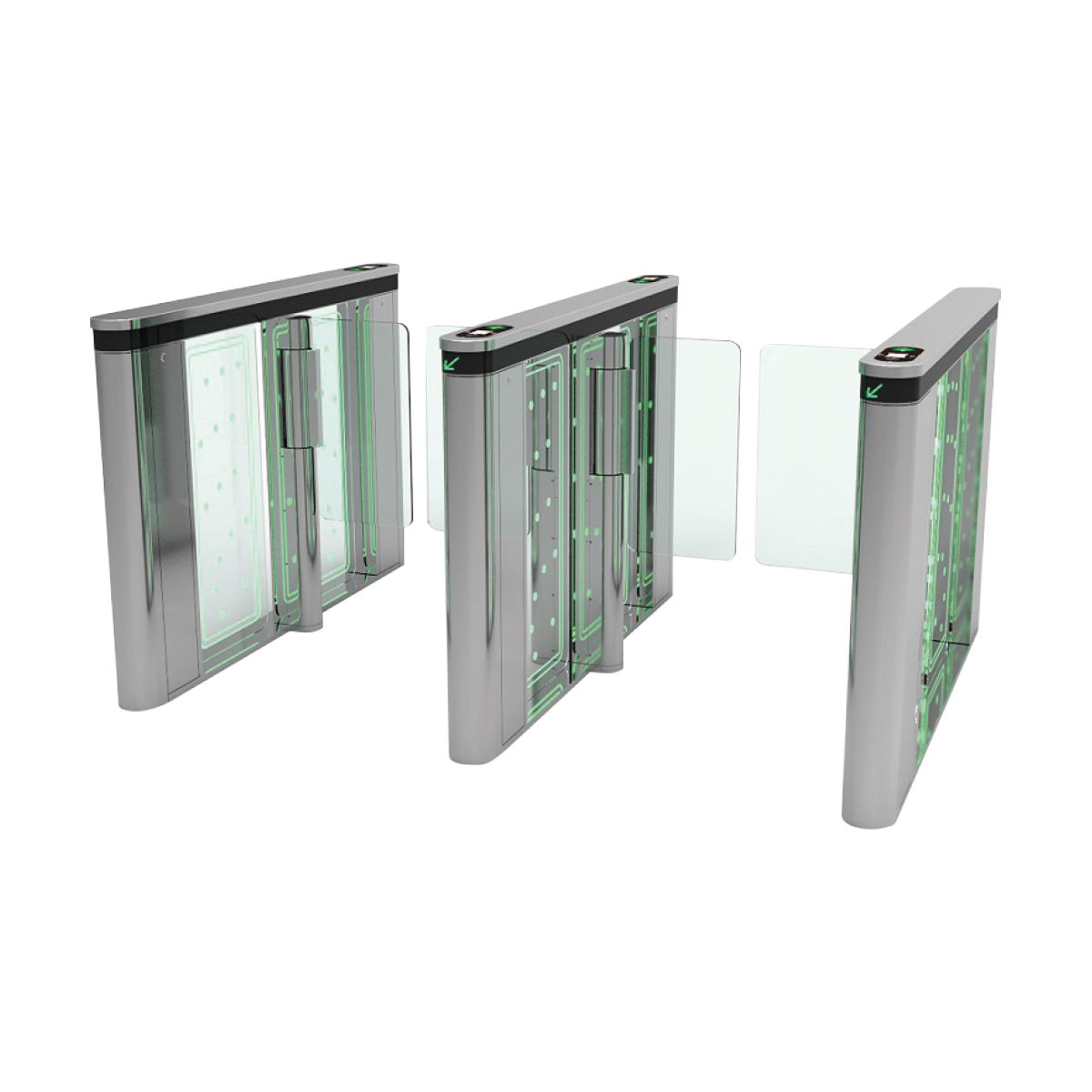

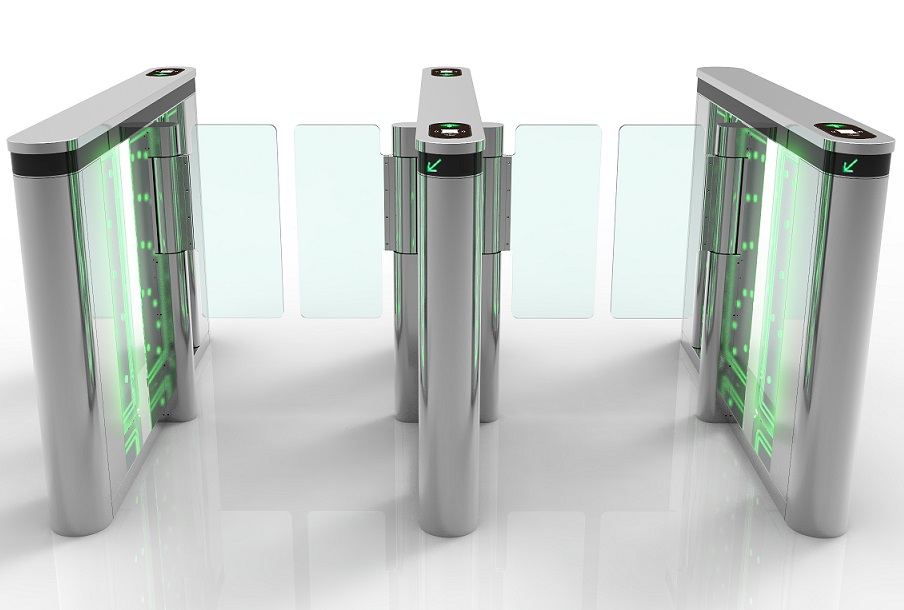

LD-S703 Speed Gate Turnstile for Access Control Entrance
LD-S703 speed gate turnstile is designed to manage the flow of people into and around your building. It offers a security solution that allows some users to simply pass through, whilst directing others to a specific location, for instance a reception desk or lift hall, and it offers options for disabled access.
Activated by an access control system such as a card reader, QR code/ bar code reader biometric device or external control panel, and equipped with sensors to prevent tailgating and piggybacking, our access control speed gates ensure only authorized users can pass through.
Product specifications:
| Moduel No. | LD-S703 |
| Size | 1400*200*980mm; |
| Material | 304 stainless steel, acrylic |
| Channel width | standard 600mm |
| Thickness of the cabinet | 1.5mm |
| Drive motor | DC 24V brushless servo motor, low noise |
| Traffic direction | One-way traffic/two-way traffic |
| Passing speed | 50~55 persons/minute |
| Opening methods | ID/IC card and other readers to verify opening, infrared induction automatic opening, button opening, etc. |
| Gate opening signal | dry contact signal |
| Protection functions | clutch anti-collision, infrared anti-pinch, infrared alarm for illegal intrusion |
| Life | not less than 9 million times |
| Number of infrared sensor | 6 pairs |
| Power | 24 V, 100W |
Product features:
1. Main body and lateral lids are 304 stainless steel.
2. Lateral covers are removable for easy maintenance.
3. Low power consumption and silent running.
4. Compatible with all Access Control Systems.
5. Turnstile gate is equipped with an alarm system which senses forbidden and revers direction passing.
6. Turnstiles closes flaps by itself after adjusted time if a valid card is presented but person not passed.
7. All the obstacles in the passage are sensed with photoelectric sensors.
