LD-S708 access control speed gate is our latest desinged glass turnstile gate which has a highger performance but lower cost. It's DC brushless motor is special desinged, and work as a servo motor, running with a very low noise, with it's slim body and fast pass speed, very suitable for indoor application places such as high-end commercial buildings, high-end office buildings, interstellar hotels and other offices and reception halls.
Product features:
| Moduel No. | LD-S706 |
| Brand | Lide Tech |
| Size | 1500*160*1015mm; |
| Material | 304 stainless steel, acrylic |
| Channel width | standard 600mm |
| Thickness of the cabinet | 1.5mm |
| Drive motor | DC 24V brushless motor, low noise |
| Traffic direction | One-way /two-way traffic |
| Passing speed | 50~55 persons/minute |
| Opening methods | ID/IC card, QR code, facial recogntion, fingerprint, infrared induction automatic opening, button opening, etc. |
| Life | not less than 9 million times |
| Number of infrared | 8-12 pairs |
| Open time | 0.5-0.8s |
Product features:
1. 304 brushed stainless steel material, laser cutting technology, beautiful appearance;
2. DC brushless anti-collision movement, clutch braking, special designed motor drive module drive, stable and reliable movement, low noise, lost cost.
3. Using a high-precision angle encoder as a sensor to monitor the movement trajectory in real time, the equipment runs more smoothly and the movement life is longer;
4. The baffle switch speed is fast, and the passing rate is high;
5. Infrared beam technology monitors the traffic status of personnel in real time, effectively preventing trailing and recoil;
6. After the power is off, the baffle opens automatically to form a transparent passage, which meets the requirements of fire protection;
7. Fast identity authentication technology can accurately and efficiently identify IC cards, ID cards, magnetic cards or barcodes;
8. Sound and light or voice prompt function, beware of illegal entry or irregular passage.

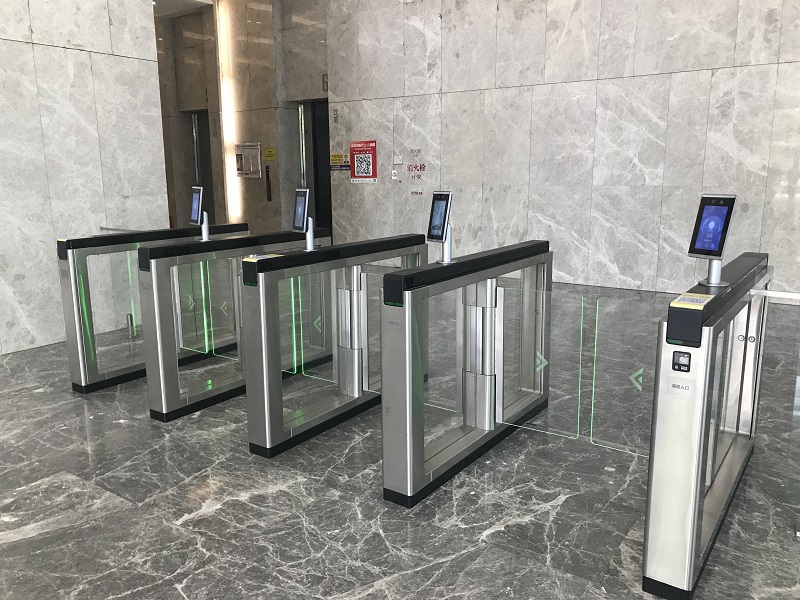

Application photo:
