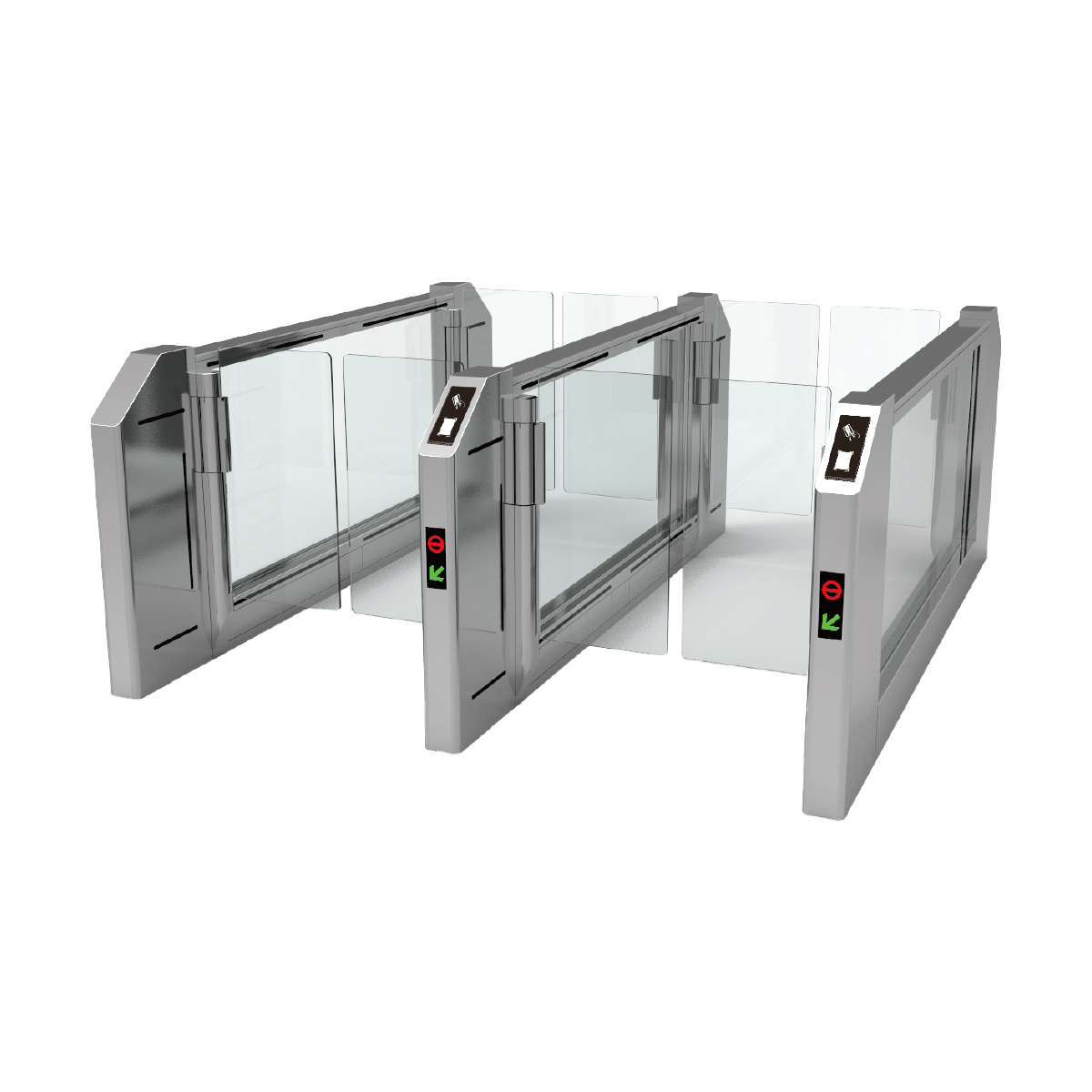

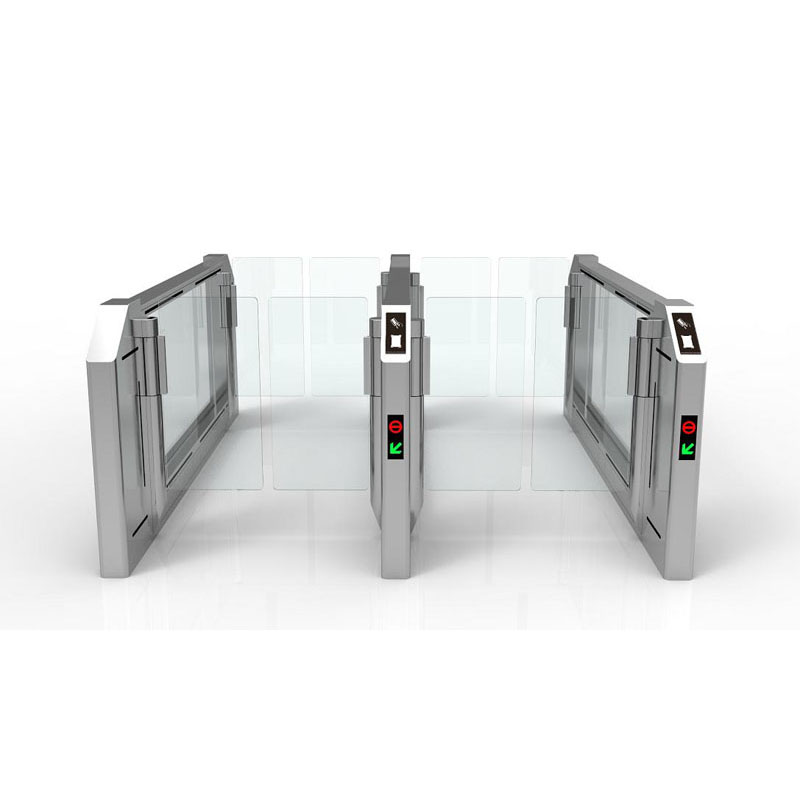

Airport customs AB double-gate RFID swing barrier gate is also called glass wing double-gate interlocking swing barrier gate.Tempered glasses are on both side, and they are transparent and bright, simple and generous. First-class brushless DC motor and precise positioning encoder are adopted. They Ensure that the door swing rotates quickly and accurately, smoothly and silently, low power consumption, energy saving and environmental protection. It is suitable for various high-end and high-security indoor occasions such as financial institutions, government secret office areas, commercial buildings, airports, customs, and high-level clubs.
Feature 1: Double-gate control
The double gates are interlocked, when gate A/B is opened, gate B/A is closed.
Feature 2: Accurate and stable
Using 20 pairs of military-grade infrared detectors and precise algorithms, it can accurately detect the position of pedestrians in the passage, and realize the functions of anti-trailing, anti-reverse, and anti-pinch.
Feature 3: Multiple anti-pinch
It adopts multiple anti-pinch designs such as infrared anti-pinch, mechanical anti-pinch and advanced current detection anti-collision to provide multiple guarantees for pedestrian safety.
Feature 4: Multiple identification methods
Support various IC/ID recognition, biometric and identity recognition technologies, including face recognition, fingerprint recognition, vein recognition, etc.
Feature 5: Compatible with various controllers
Equipped with dry contact signal input interface, RS485 / RS232 interface, TCP/IP interface (optional), compatible with various access controllers.
Feature 6: Process Refining
The stainless steel cabinet of the intelligent swing barrier gate is painted, with bright color, strong visual impact, good surface finish, more beautiful appearance, easy to scrub, good moisture-proof and fire-proof performance.
Main Technical Parameters:
| Material of swing arm | Acrylic / tempered glass |
| Thickness of swing arm | 8-12 mm |
| Length of swing arm | 300-600 mm |
| Input power | DC24V |
| Chassis material | SUS 304 stainless steel, steel thickness is non-standard 1.5mm, the whole machine is high-grooving technology |
| Working voltage | AC220±10%V 50±10%HZ |
| Power consumption | static 200W, dynamic 350W |
| Drive motor | 24V DC brushless motor, Hall code disc positioning, accurate positioning |
| Dimensions | L3000*W150*H1100mm |
| Working environment | indoor and outdoor (shade shed) -10℃～70℃ Relative humidity: ≤90%, non-condensing |
| Gate opening and closing time | 0.8-1 second adjustable |

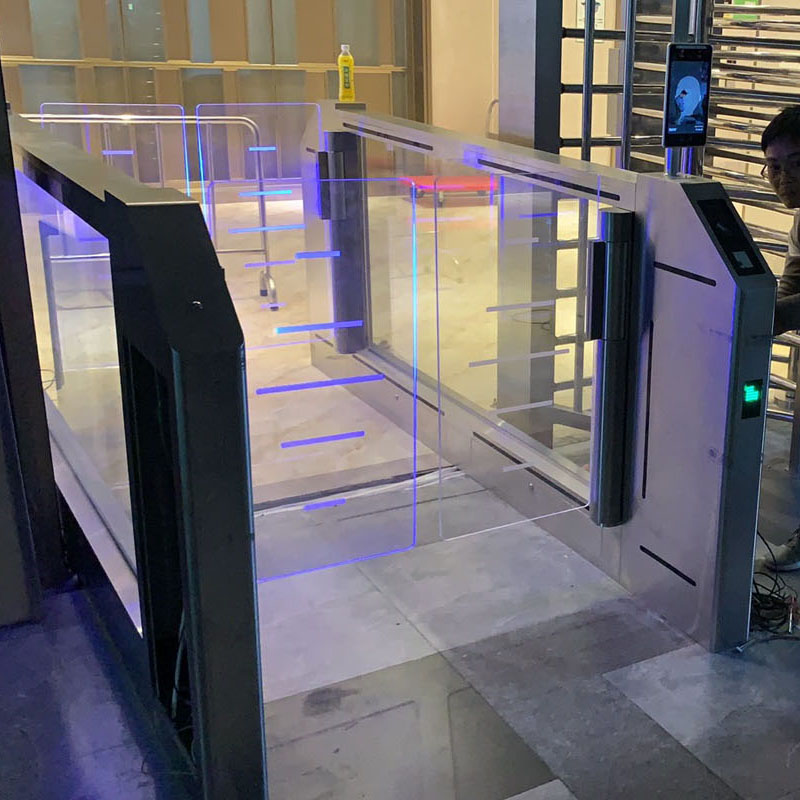

Case Show:
