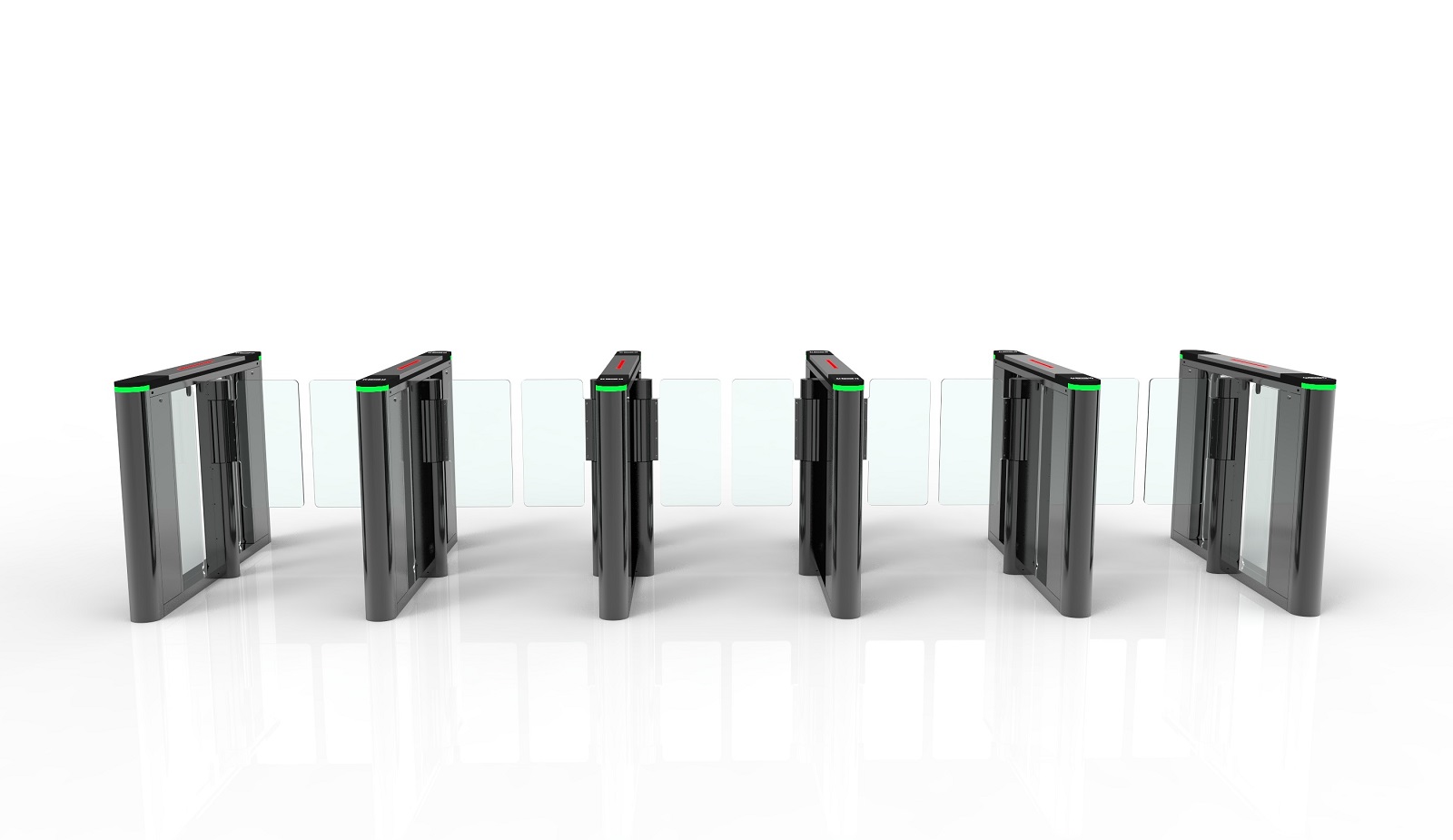

Lide Tech speed gate offers a entrance solution which balanced the speed, security, elegant and cost.

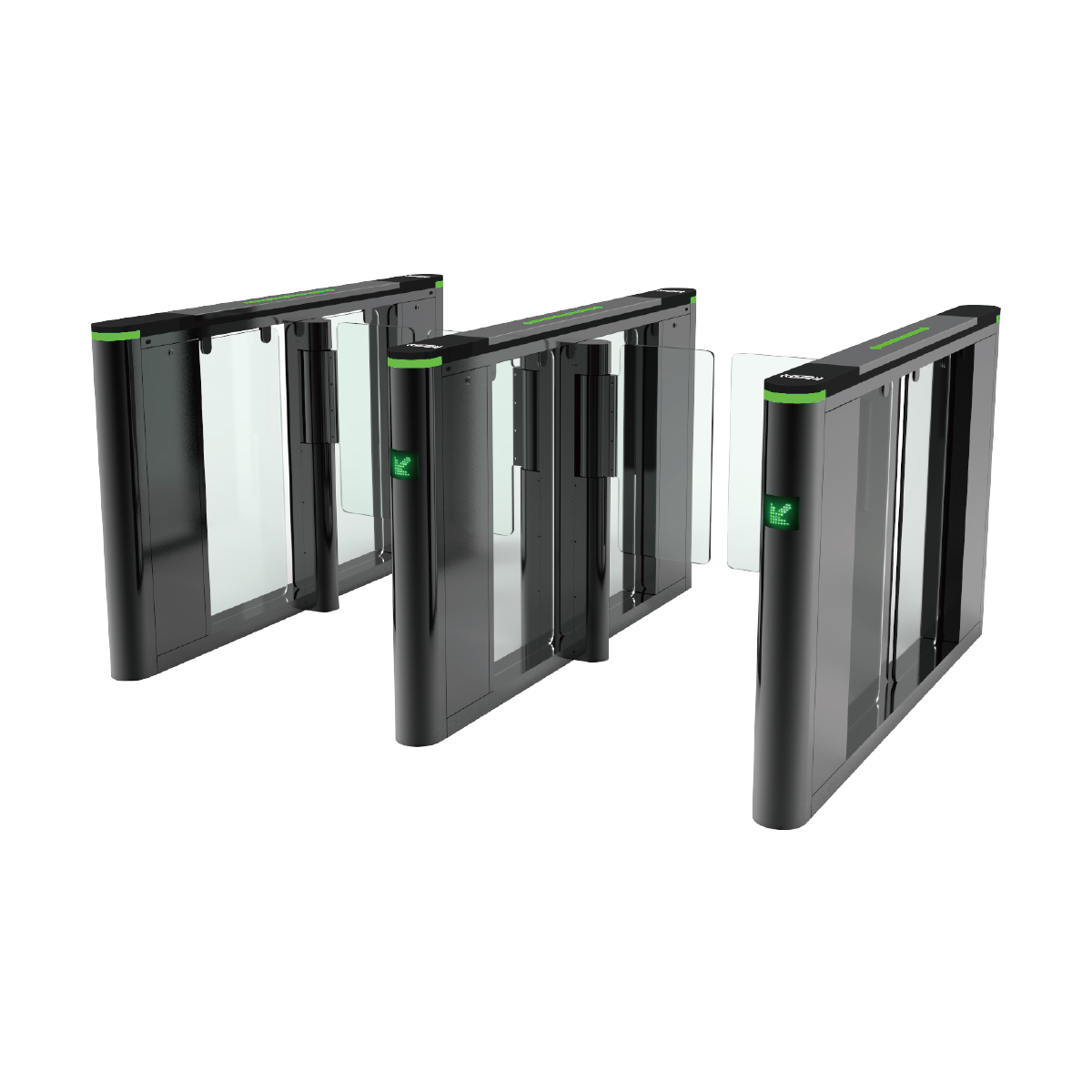

Speed: LD-S709 adopts brushless DC motor, also when it requires high swing wings or fiber glass wings, it could be upgraded to brushless Servo motor, it ensure fast and efficient traffic speed, allows ordered and continuous passage of 40 persons per minute.
Security: With IR sensor detection system,the gate canpreciselydetect the passage ofeach single authorisedpedestrian and effectivelyblock unauthorised entry and release warning.
Elegant: It is slim, small footprint and elegant, there are various length, height and colour options , it is made of 304 stainless steel with vacuum ion plating to different colors and anti-fingerprint treatment.It can be highlycustomized to any look.
Cost-effective: it is high quality with international certificated with affordable price.
Specifications:
| Moduel No. | LD-S709 |
| Size | 1500*130*980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor, low noise |
| Passing speed | 35~40 people / minute |
| Applicable temperature | -20~70℃ |
| Life Time | 9 million times; |
| The material thickness | 1.5mm |
| Response time | <1s |
| Swing direction | One-way / two-way |
| Opening methods | ID/IC card reader, infrared induction automatic opening, button opening, etc. |
