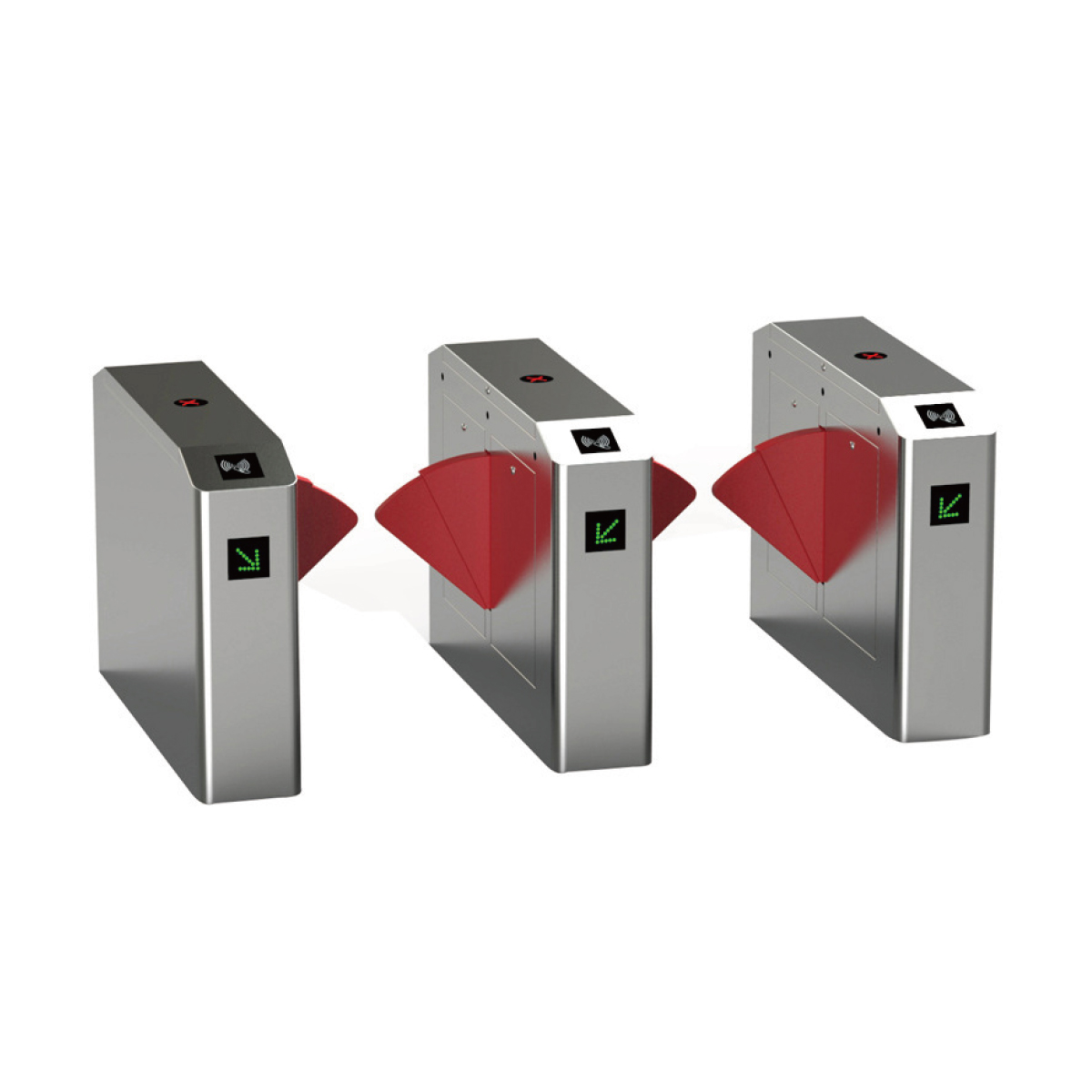

High Speed Flap Barrier Gate Turnstile
The flap barrier is controlled by a programmable logic controller (PLC) which is compatible with all kind of access control systems and the electronic mechanism is enclosed in a high quality 304 stainless steel cabinet. The barrier dimensions, housing material as well as shape make the device looks gentle and light.
The passageway length is 900mm which is allow the people with wheelchairs (International standard) to through and the closing force on the flap is monitored electronically preventing injury to pedestrians. It can be used in office building, hotel and apartment building.
Parameters:
| Model No. | LD-Y605 |
| Size | 1400*310*980 mm |
| Material | 304 stainless steel, PU |
| Lane width | 900mm |
| Thickness of the housing | 1.2mm / 1.5mm |
| Drive motor | Brushless DC 24V |
| Input voltage | 220V, 50HZ |
| Passing speed | 30-35 people / minute |
| Opening signal | Dry contact |
| Life | 9 million times; |
Features:
1. The high speed gate turnstile can alarm and close quickly when someone enter from the opposite direction.
2. Can be configured for single direction or bi-directional passage.
3. The illuminated symbols clearly indicate if the visitor authorized and also show if the lane is clear to go through.
4. System runs smoothly, low noise, no mechanical impact.
5. The flap turnstile alarms if someone wants to break in without permission
6. Flap arms will open automatically in case power failure, which is complying with fire safety requirements
7. It equipped sensitive Infrared sensor for improving the accuracy of detection.
8. It can link to all brands of door access control system and biometric recognition system.
9. It will lock automatically within 5s (can be setting) if passenger delay to entry.
