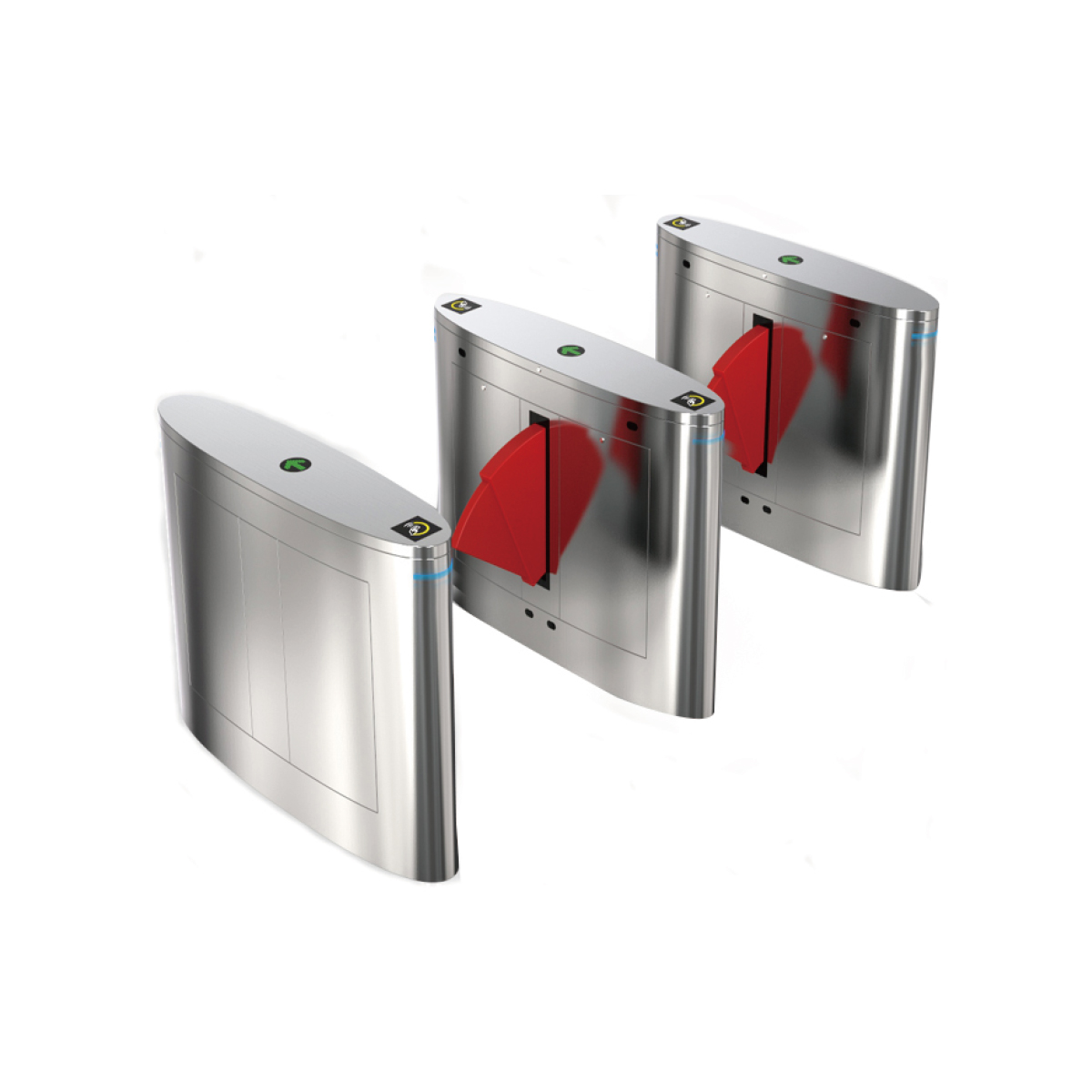

LD-Y606 Optical Access Control Flap barrier Turnstile
LD-Y606 Flap Barrier is the standard security level of access control entrance, which offers 900mm width passage lane and allows the disability people with wheelchairs (standard size) to pass through. It is normally used in the applications such as subway stations, harbors and hotel.
The Flap Barrier Turnstile is with the compact design and provides security solution. When the lane closed, the two PU swings meet near the top forming a barrier. When opened, the swings retract fully into the cabinet for a concealed look.
Material:
* The housing is made of 304 stainless steel (316 stainless steel optional).
* The baffle is made in PU material (800E) which softy and replaceable.
* It equipped with 5 pairs of infrared sensors to detect accurately and prevent tailgating.
Parameters:
| Model No. | LD-Y606 |
| Size | 1400*310*980 mm |
| Material | 304 stainless steel, PU |
| Lane width | 900mm |
| Thickness of the housing | 1.2mm / 1.5mm |
| Drive motor | Brushless DC 24V |
| Input voltage | 220V, 50HZ |
| Passing speed | 30-35 people / minute |
| Opening signal | Dry contact |
| Life | 9 million times; |
Features:
- TheFlap Turnstile and associated access control readers are all tested in factory before shipment.
- Single or bi-directional passage is selectable.
- The direction indicator shows that the current status of lane and guide pedestrians correct and smooth passage.
- The movement drive by brushless DC 24V motor, which hard-wearing and life time over 9 million times.
- The gate opens automatically as the emergency exit when power off (if battery installed).
- It interfaced with laptop through RS232 (RS485, TCP-IP) line
- The system can be set to delay closing in 1-60s after the valid identification.
- It can be mounted with display, passage counter, card reader, biometric device etc.
