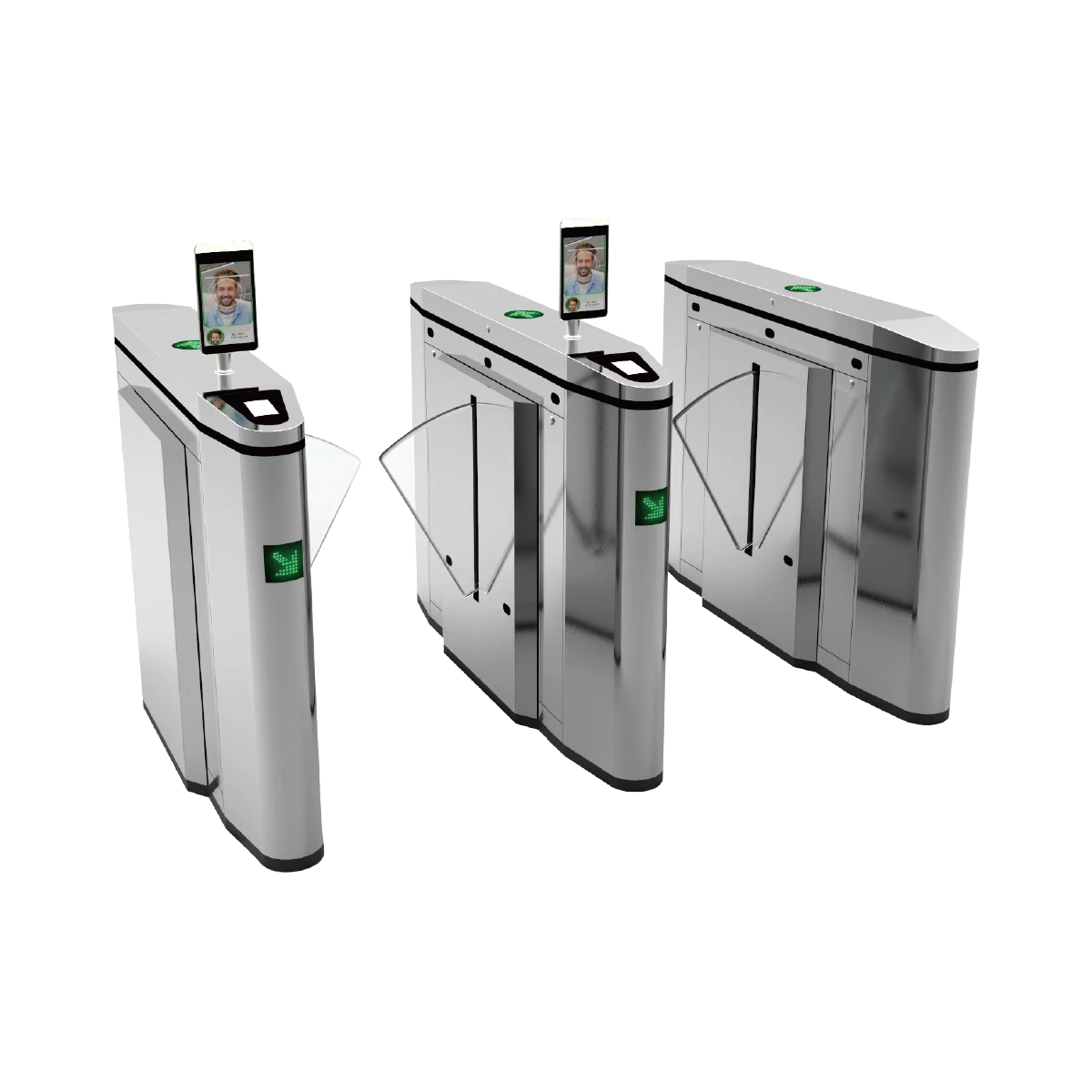

Optical flap barrier turnstiles are access control gates for people that allow a comfortable passing with a free opening of 500 mm, offering a feeling of spaciousness. Its operation is to hide the double swings, leaving the free passage. Its triangular shape makes the vertices hamper the passage. But after opening verification of access control system, we perceive the free passage immediately.

Technical Parameters:

Material of cabinet SUS 304 stainless steel
Drive motor DC24V DC brushless motor
Product dimension 1400*280*990(MM)
Telescopic arm length 250 MM
Maximum channel width 550 MM
Gate opening and closing time 0.6 seconds
Communication Interface Standard RS485 interface, distance ≤1200 meters
Passing speed 40 people/minute (normally open), 25-30 people/minute (normally closed)

Standard product functions and features:

  1. The turnstiles havefault self-checking and alarm prompt function.

  1. The operating status of the device can be programmed through the built-in small touch panel LCD screen on the main control board.

  1. Mechanical anti-pinch and infrared induction anti-pinch function.

  1. Illegal break-in, trailing alarm, reverse break-in gate automatically closes.

  1. Anti-shock function, the telescopic arm will automatically lock up when it does not receive the gate opening signal.

  1. Infrared induction reset, infrared induction anti-pinch function (with 4 pairs of infrared).

  1. It can be connected with various access control systems: IC/ID card, QR code facial recognition, etc.

  1. Unidirectional or bidirectionalcontrol of personnel entry and exit, infrared induction entry and exit channels.

  1. Remote control management can be realized directlyvia computers.

Installation and after-sales services:

The turnstile come in a fully assembled individual packaging and you just have to put them in place and screw them to the ground.

Users are replied faster for after-sales service. On Saturday and Sunday, consultations are also available.
