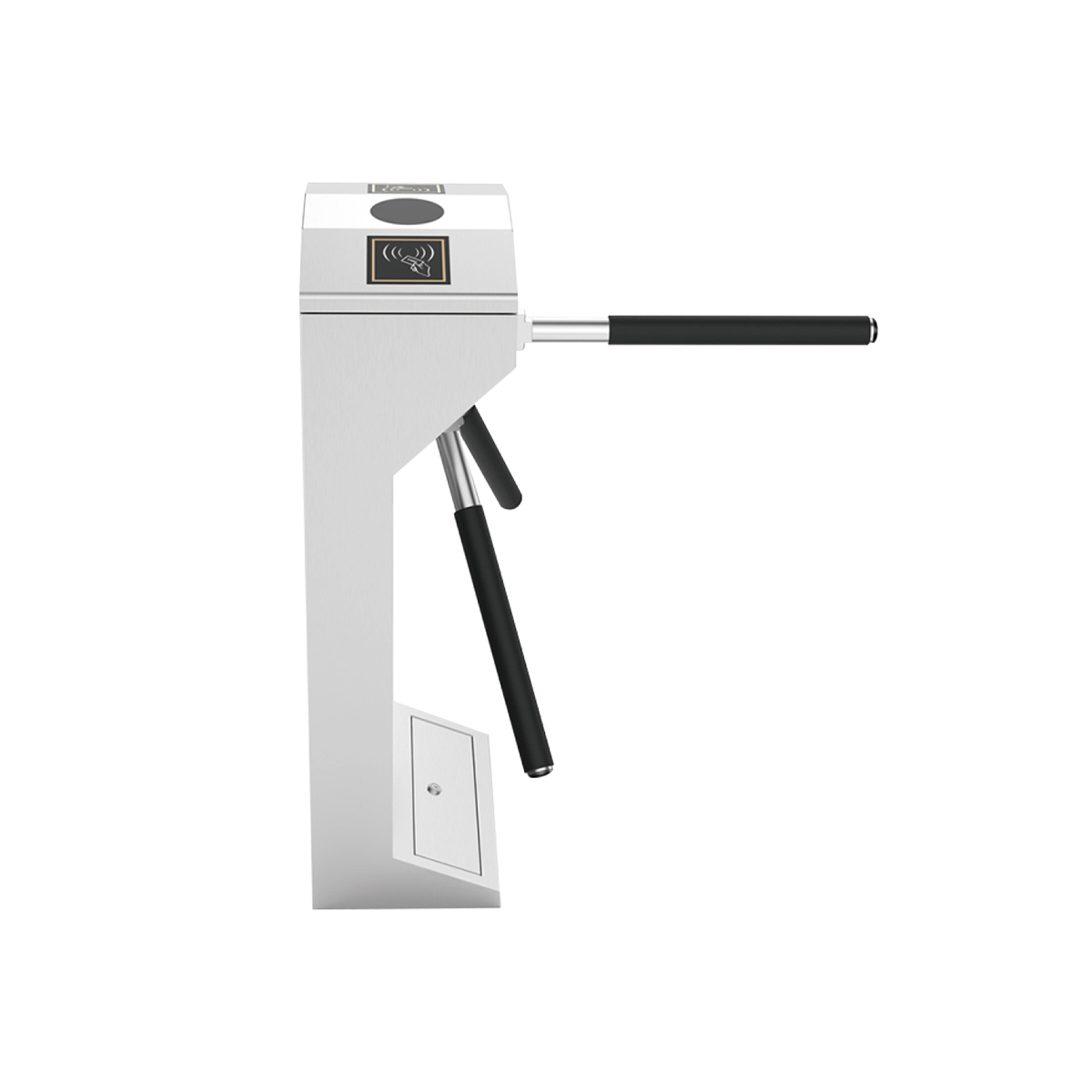

Simple waist height Tripod turnstile Gate
Tripod Turnstile is the half height security solution for unmanned entrances with affordable cost. It only permits one person pass on each turn of the turnstile that achieved by three arm rotor mechanism.
The housing and tripod arms of Waist Height Tripod Turnstile is made of 304 grade brushed stainless steel and processed on CNC machines. The corners of main body all smoothened. The other parts of device are handled by electro-galvanized against corrosion that could hard-wearing and durable.
In the period of post pandemic, we could extend the function of face recognition and temperature detection in the base of contactless position sensing technology, that would be the best solution for recoding the visitors.
Parameters:
| Model No. | LD-T301 |
| Size | 482*283*965 mm (L*W*H) |
| Material | 304 stainless steel |
| Channel width | 510mm |
| Thickness of shell | 1.2mm |
| Power | 110-230VAC Single phase, 50/60 Hz |
| Traffic direction | Single Direction or Bi-directional; |
| Passing speed | 30~35 persons/minute |
| Opening signal | Dry contact |
| Life | 5 million times; |
Features:
1. It can be used for bi-directional passage control.
2. Standard communication interface is RS 232 (RS 485, TCP / IP optional).
3. With rotor mechanism, tripod arms are positioned at 120 degrees.
4. The systems allow free passage in emergency and in case of power failure
5. The LED direction arrow indicates easy access from one side or either of the sides.
6. Integrated with all type of access control panels / Card reader available in the market.
7. Arms could be locked on both sides to ensure complete blocking of traffic if needed.
8. CE certificated
